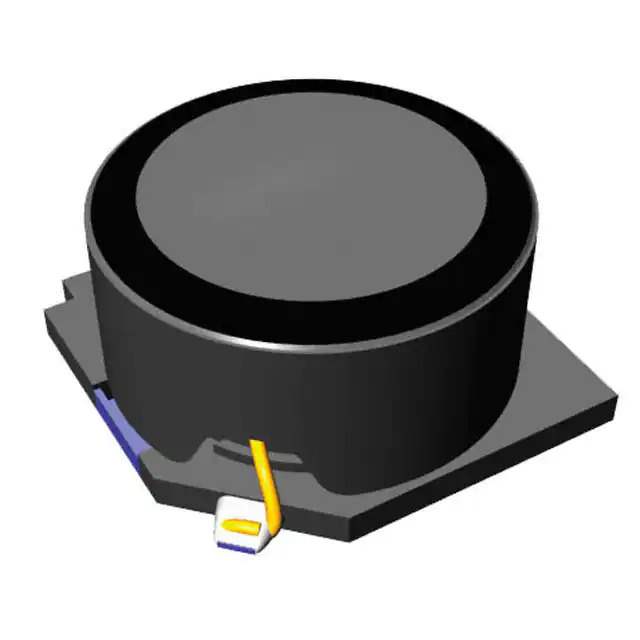

NS12565T4R2NN Real Image
Same model may have multiple batches, images only for reference.

NS12565T4R2NN

Part No NS12565T4R2NN
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.2UH 5.91A 15.12 MOHM
Datasheet
NS12565T4R2NN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NS
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.2 µH
Tolerance ±30%
Current Rating (Amps) 5.91 A
Current - Saturation (Isat) 10.15A
Shielding Shielded
DC Resistance (DCR) 15.12mOhm Max
Frequency - Self Resonant 41.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.270" (6.85mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 649520-NS12565T4R2NN
Ultra Librarian 3D Model Ultra Librarian NS12565T4R2NN CAD Model

Description

The NS12565T4R2NN is a drum core, wirewound fixed inductor from Taiyo Yuden's NS series.

  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 4.2 μH
  • Tolerance: ±30%
  • Shielded: Yes
  • Mounting: Surface Mount
  • Packaging: Tape & Reel
  • Standard Package Quantity: 500 pcs
  • Maximum DC Resistance (DCR): 15.12mOhm
  • Operating Temperature Range: -40°C to 125°C
