CGGBP.25.4.A.02 Taoglas Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

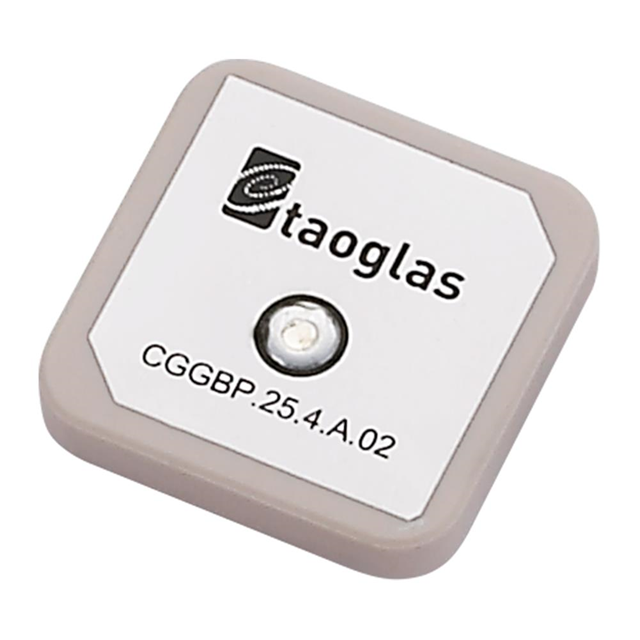

CGGBP.25.4.A.02

Part No CGGBP.25.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.56/1.575GHZ CER PATCH
Datasheet
CGGBP.25.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and WirelessRF Antennas
Manufacturer Taoglas Limited
Packaging Tray
Part Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.56GHz, 1.575GHz, 1.602GHz
Antenna Type Ceramic Patch
Number of Bands 3
VSWR 2.5, 2.5, 1.8
Return Loss -34dB
Gain 4.96dBi, 4.99dBi, 5.48dBi
Termination Pin
Mounting Type Connector Mount
Height (Max) 0.157" (4.00mm)
Applications Beidou, GLONASS, GPS
Base Product Number CGGBP.25
Ultra Librarian 3D Model Ultra Librarian CGGBP.25.4.A.02 CAD Model
