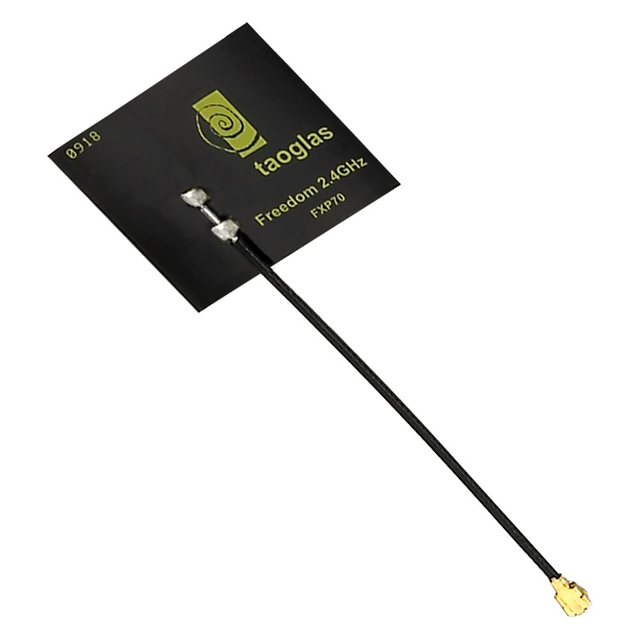

FXP70.07.0053A Taoglas Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

FXP70.07.0053A

Part No FXP70.07.0053A
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 2.4GHZ FLAT PATCH IPEX
Datasheet
FXP70.07.0053A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and WirelessRF Antennas
Manufacturer Taoglas Limited
Series Freedom
Packaging Bag
Part Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.483.5GHz
Antenna Type Flat Patch
Number of Bands 1
VSWR 1.5
Gain 1.1dBi
Power - Max 5 W
Termination U.FL (UMCC), I-PEX MHF1
Mounting Type Adhesive
Height (Max) 0.003" (0.08mm)
Applications Bluetooth, WLAN, Zigbee?
Base Product Number FXP70.07
Ultra Librarian 3D Model Ultra Librarian FXP70.07.0053A CAD Model
