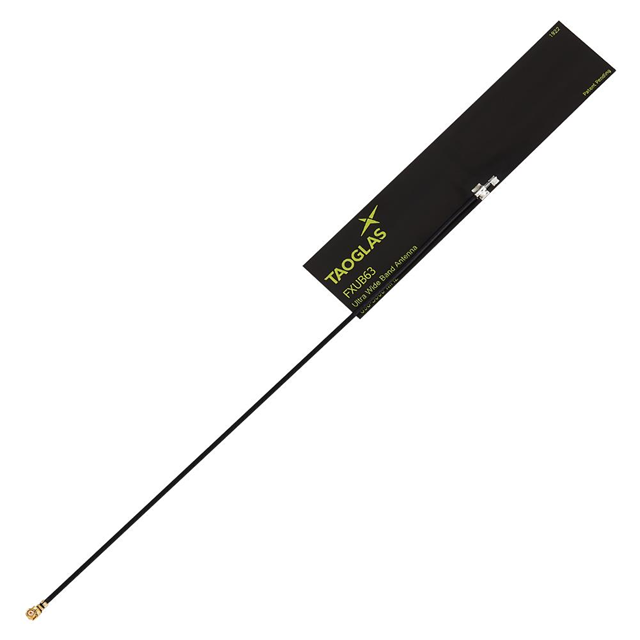

FXUB63.07.0150C Real Image
Same model may have multiple batches, images only for reference.

FXUB63.07.0150C

Part No FXUB63.07.0150C
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 850MHZ/1.575GHZ FLT PATCH / 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz GPS, LTE, Wi-Fi Flat Patch RF Antenna 698MHz ~ 3GHz 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi U.FL (UMCC), IPEX MHF1 Adhesive
Datasheet
FXUB63.07.0150C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Taoglas Limited
Package Bulk
RF Family/Standard Cellular, Navigation, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz
Frequency Range 698MHz ~ 3GHz
Antenna Type Flat Patch
Number of Bands 6
VSWR 2, 2, 1.8, 1.7, 1.7, 2.3
Return Loss -10dB, -10dB, -11dB, -12dB, -12dB, -8dB
Gain 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi
Power - Max 5 W
Features Cable - 150mm
Termination U.FL (UMCC) , IPEX MHF1
Mounting Type Adhesive
Height (Max) 0.008" (0.20mm)
Applications GPS, LTE, Wi-Fi
Base Product Number FXUB63
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
California Prop 65 Warning Information
Win Source Part Number 1343400-FXUB63.07.0150C
Ultra Librarian 3D Model Ultra Librarian FXUB63.07.0150C CAD Model

Description

The 1343400-FXUB63.07.0150C is an RF antenna manufactured by Taoglas Limited.

  • Antenna Type: Flat Patch
  • Cable Length: 150mm
  • Termination: U.FL (UMCC), IPEX MHF1
  • Package: Bulk
  • Standard Package: 100
  • Ingress Protection: Not Specified
  • Power Maximum: 5W
  • Frequency Range: 698MHz to 3GHz
  • Return Loss: -10dB, -10dB, -11dB, -12dB, -12dB, -8dB
  • Height: 0.008" (0.20mm)
  • Frequency Group: Wide Band
  • Frequency (Center/Band): 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz
  • Number of Bands: 6
  • VSWR: 2, 2, 1.8, 1.7, 1.7, 2.3
  • Gain: 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi
  • RF Family/Standard: Cellular, Navigation, WiFi
  • Mounting Type: Adhesive
  • REACH: Unaffected
