Same model may have multiple batches, images only for reference.

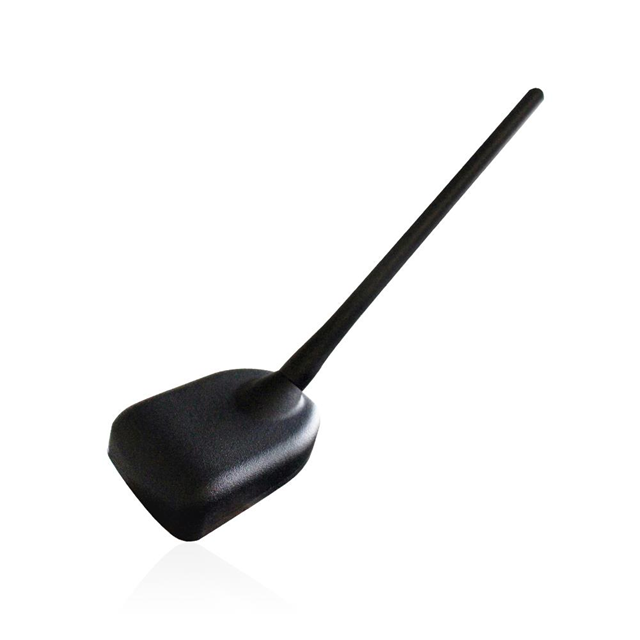

MA1045.A.ALBTX.002 Real Image
Same model may have multiple batches, images only for reference.

MA1045.A.ALBTX.002

Part No MA1045.A.ALBTX.002
Manufacturer Taoglas Limited
Catalog RF Antennas
Description 5IN1 300MM RG-174:GNSS FAKRA C:  /  750.5MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.4GHz Beidou, GPS, LTE Dome RF Antenna 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.345GHz, 2.3GHz ~ 2.5GHz 0.6dBi, 2.7dBi, 2.7dBi, 4.4dBi, 2.2dBi, 1.2dBi, 4.6dBi, 5.4dBi, 3dBi BNC Female, SMB, Fakra Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Bag
RF Family/Standard Cellular, Navigation
Frequency Group Wide Band
Frequency (Center/Band) 750.5MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.4GHz
Frequency Range 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.345GHz, 2.3GHz ~ 2.5GHz
Antenna Type Dome
Number of Bands 10
Return Loss -10dB
Gain 0.6dBi, 2.7dBi, 2.7dBi, 4.4dBi, 2.2dBi, 1.2dBi, 4.6dBi, 5.4dBi, 3dBi
Features Cable - 300mm
Termination BNC Female, SMB, Fakra
Ingress Protection IP67
Mounting Type Panel Mount
Height (Max) 2.419" (61.45mm)
Applications Beidou, GPS, LTE
Base Product Number MA1045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 931-MA1045.A.ALBTX.002
Standard Package 1
Win Source Part Number 1202389-MA1045.A.ALBTX.002
Ultra Librarian 3D Model Ultra Librarian MA1045.A.ALBTX.002 CAD Model

Description

The MA1045.A.ALBTX.002 is an RF antenna for Beidou, GPS, and LTE applications.

  • Frequency Range: 698MHz to 803MHz, 824MHz to 894MHz, 880MHz to 960MHz, 1.559GHz to 1.563GHz, 1.574GHz to 1.576GHz, 1.71GHz to 1.88GHz, 1.85GHz to 1.99GHz, 1.92GHz to 2.345GHz, and 2.3GHz to 2.5GHz
  • Antenna Type: Dome
  • Height: 2.419" (61.45mm)
  • Return Loss: -10dB
  • Frequency Group: Wideband
  • VSWR: -
  • Gain: 0.6dBi to 5.4dBi (depending on frequency)
  • Mounting: Panel Mount
  • Termination: BNC Female, SMB, or Fakra
