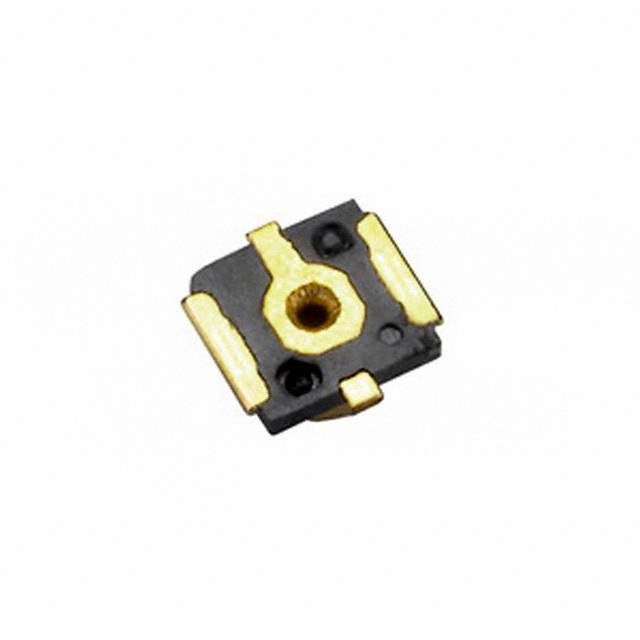

RECE-20449-001E-01 Real Image
Same model may have multiple batches, images only for reference.

RECE-20449-001E-01

Part No RECE-20449-001E-01
Manufacturer Taoglas Limited
Catalog Coaxial Connectors (RF)
Description CONN UMC RCPT STR 50 OHM SMD
Datasheet
RECE-20449-001E-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Taoglas Limited
Packaging Reel - TR
Status Active
Connector Style Ultra Miniature Coaxial, IPEX MHF4
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Housing Color Black
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C to 90°C
Center Contact Material Brass
Win Source Part Number 105129-RECE-20449-001E-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RECE-20449-001E-01 CAD Model

Description

The 105129-RECE-20449-001E-01 is an ultra-miniature coaxial connector designed for use in various electronic devices from Taoglas Limited.

  • Connector Type: Receptacle, Male Pin
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Housing Color: Black
  • Body Material: Brass with Gold Finish
  • Maximum Input Frequency: 6GHz
  • Temperature Range: -40°C to 90°C
