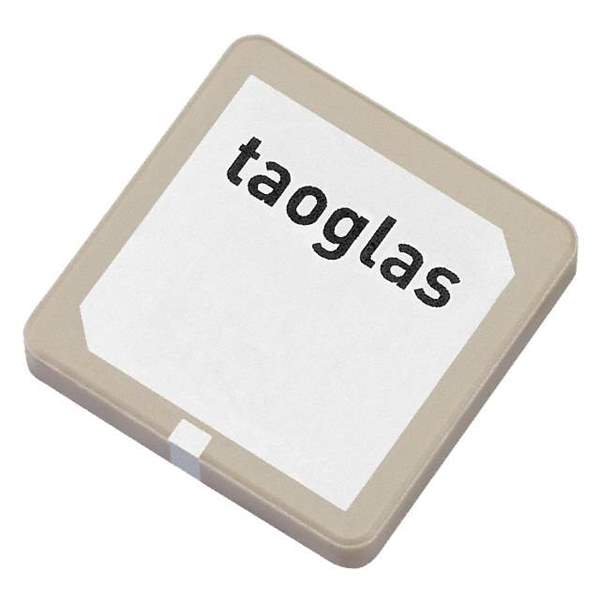

SGGP.25.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

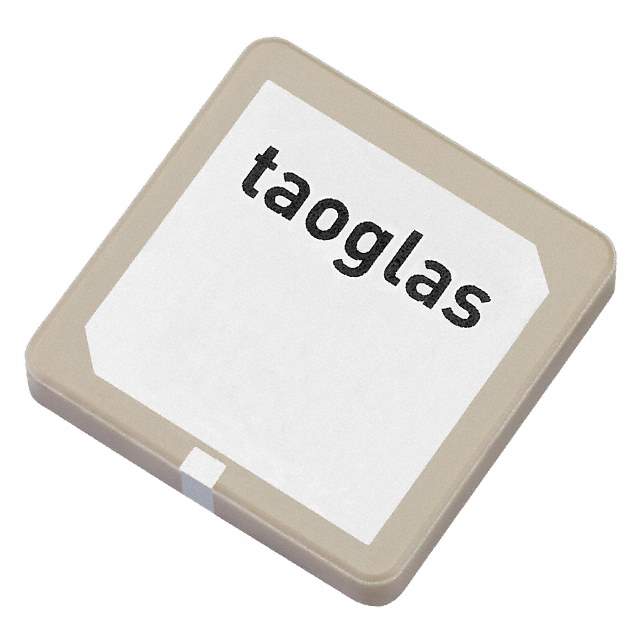

SGGP.25.4.A.02

Part No SGGP.25.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575/1.602GHZ CER PATCH  /  1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz ~ 1.602GHz -0.14dBic, 1.75dBic Solder Surface Mount
Datasheet
SGGP.25.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.602GHz
Frequency Range 1.575GHz ~ 1.602GHz
Antenna Type Ceramic Patch
Number of Bands 2
VSWR 1.5
Return Loss -10dB
Gain -0.14dBic, 1.75dBic
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.157" (4.00mm)
Applications GLONASS, GPS
Base Product Number SGGP.25
Other Names 931-1260-1,Q8546330B,931-1260-2,2266-SGGP.25.4.A.02,931-1260-6
Standard Package 200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Win Source Part Number 1236185-SGGP.25.4.A.02
Ultra Librarian 3D Model Ultra Librarian SGGP.25.4.A.02 CAD Model

Description

The Taoglas Limited SGGP.25.4.A.02 is an RF antenna suitable for use in GLONASS and GPS applications.

  • Antenna Type: ceramic patch
  • Frequency Range: 1.575GHz to 1.602GHz
  • Height: 0.157 inches
  • VSWR: 1.5
