Same model may have multiple batches, images only for reference.

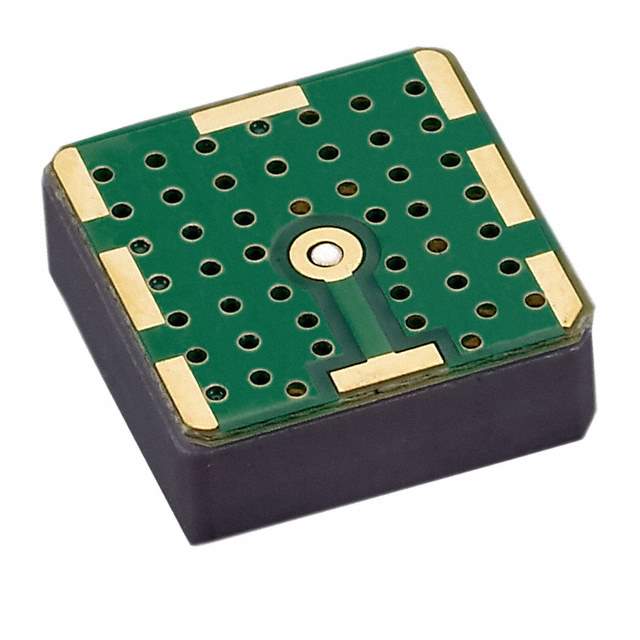

SGP.1575.12.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

SGP.1575.12.4.A.02

Part No SGP.1575.12.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575GHZ CER PATCH SLD / 1.575GHz GPS Ceramic Patch RF Antenna 1.573GHz ~ 1.577GHz -1dBic Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.573GHz ~ 1.577GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Gain -1dBic
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Applications GPS
Other Names SGP.12A,931-1027-6,931-1027-2,931-1027-1,SGP1575124A02
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Win Source Part Number 1236177-SGP.1575.12.4.A.02
Ultra Librarian 3D Model Ultra Librarian SGP.1575.12.4.A.02 CAD Model

Description

The Taoglas Limited SGP.1575.12.4.A.02 is an obsolete electronic component that belongs to the RF/IF and RFID category.

  • Navigation RF family/standard: Navigation RF
  • Frequency: 1.573GHz ~ 1.577GHz
  • Antenna Type: ceramic patch
  • VSWR: 1.5
  • Manufacturer: Taoglas Limited
  • Win Source Part Number: 1236177-SGP.1575.12.4.A.02
  • Applications: GPS
  • Standard Package: 500
