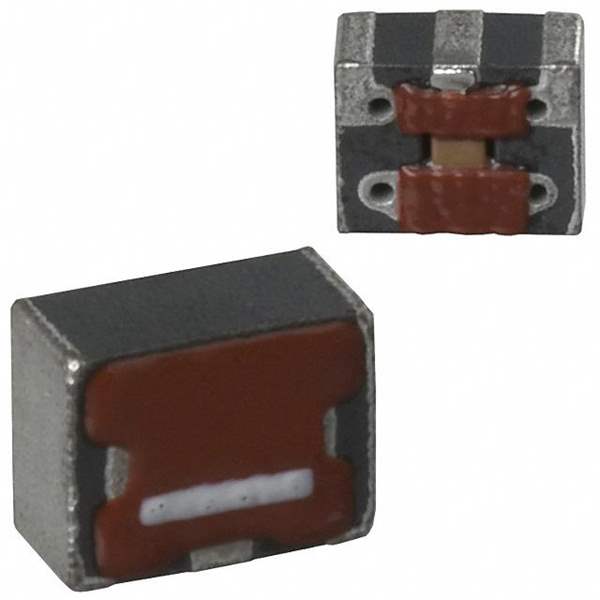

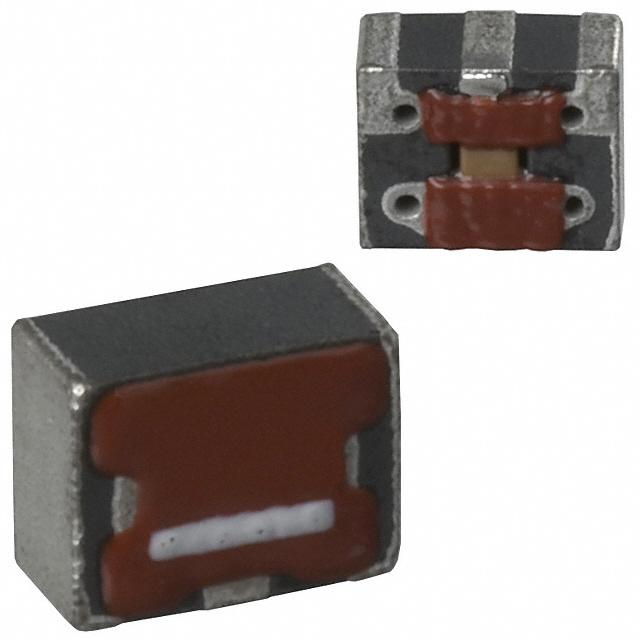

ACF321825-152-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACF321825-152-TD01

Part No ACF321825-152-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF321825-152-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 60MHz to 115MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 097943-ACF321825-152-TD01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACF321825-152-TD01 CAD Model

Description

ACF321825-152-TD01

The ACF321825-152-TD01 is an advanced electronic component renowned for its precision and reliability in various applications. Its compact design ensures that it fits seamlessly into intricate circuits, making it ideal for modern electronic projects demanding efficiency and space-saving solutions.

  • Applications:
    • Telecommunication Devices
    • High-frequency Circuits
    • Signal Processing Systems
  • Features and Benefits:
    • High impedance for effective noise suppression.
    • Surface-mount design for easy integration.
    • Exceptional thermal stability.
  • Additional Details:
    • Part of the ACF series, known for its durability and performance.
    • Compact size, making it suitable for tight board spaces.
    • RoHS compliant.
