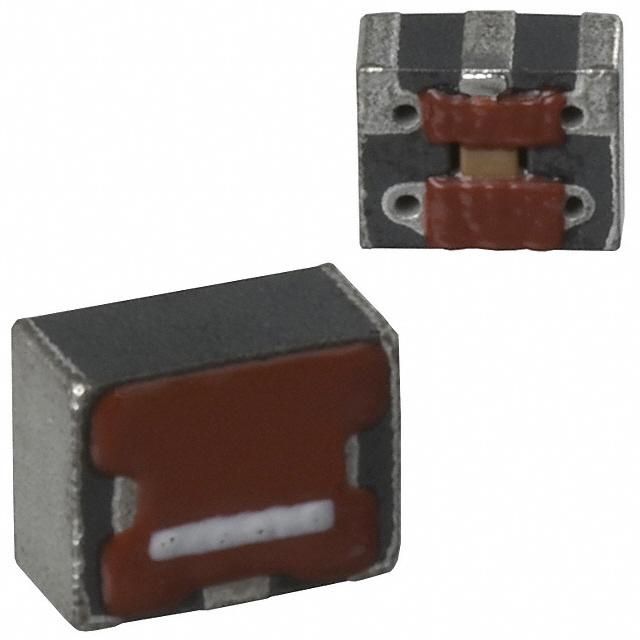

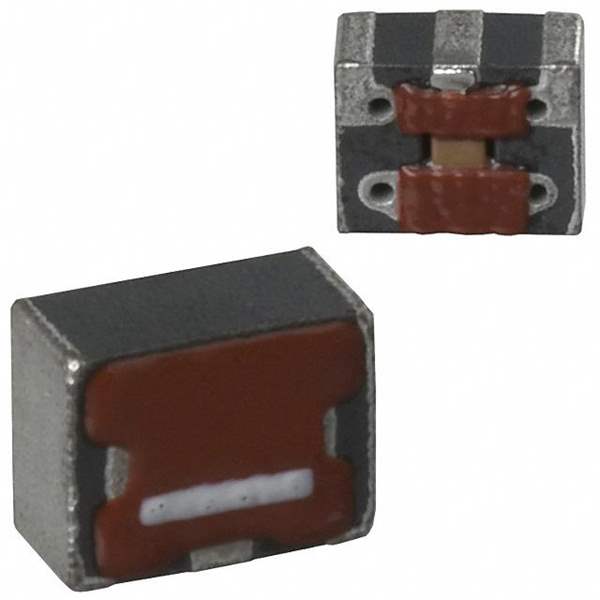

ACF321825-680-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACF321825-680-TD01

Part No ACF321825-680-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF321825-680-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 340MHz to 420MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 007801-ACF321825-680-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF321825-680-TD01 CAD Model

Description

Product Description

The ACF321825-680-TD01 component offers high efficiency and outstanding performance for cutting-edge applications. It integrates seamlessly into modern electronics, providing advanced inductance properties.

Features

  • Inductance: 68μH
  • Highly efficient design
  • Durable construction materials
  • Optimized for minimal heat generation

Benefits

  • Maximized power delivery
  • Expanded component lifespan
  • Strong operational stability

Applications

  • Medical equipment
  • Energy management systems
  • Robotics

Additional Information

Designed to meet rigorous engineering standards, the ACF321825-680-TD01 is an excellent choice for applications demanding high performance and dependability.
