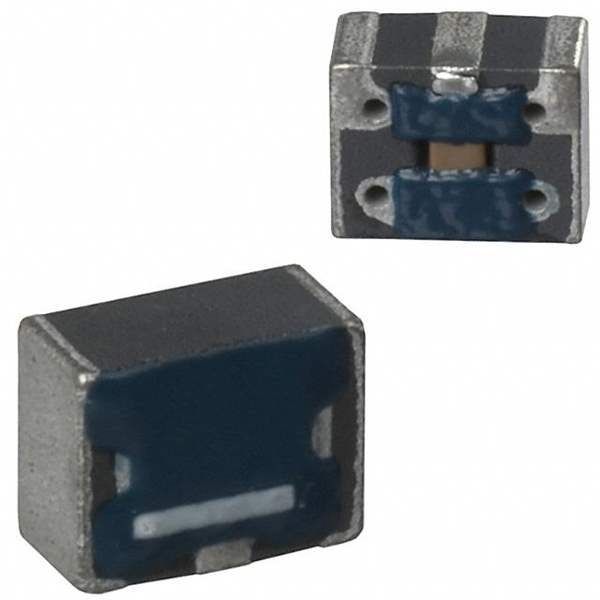

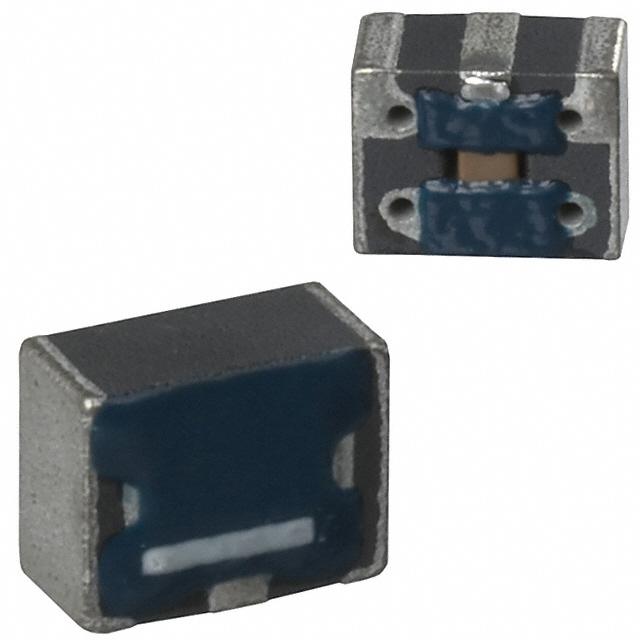

ACH3218-680-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH3218-680-TD01

Part No ACH3218-680-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH3218-680-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 340MHz to 420MHz
Resistance - Channel (Ohms) 0.06
Current 1.5A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.071" Dia x 0.126" L (1.80mm x 3.20mm)
Height 0.108" (2.75mm)
Win Source Part Number 117743-ACH3218-680-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH3218-680-TD01 CAD Model

Description

ACH3218-680-TD01 Inductor

Known for its versatility, the ACH3218-680-TD01 supports high-efficiency circuits and promotes energy conservation. This model is particularly suited for innovative electronic systems requiring superior inductance control.

Applications/Projects:

  • Wireless communication devices
  • Consumer electronics
  • Battery management systems

Features and Benefits:

  • Excellent saturation current
  • High-reliability Ferrite construction
  • Flexible mounting options

The ACH3218-680-TD01 delivers minimal thermal expansion and showcases excellent solderability, ensuring secure connections in advanced circuits.
