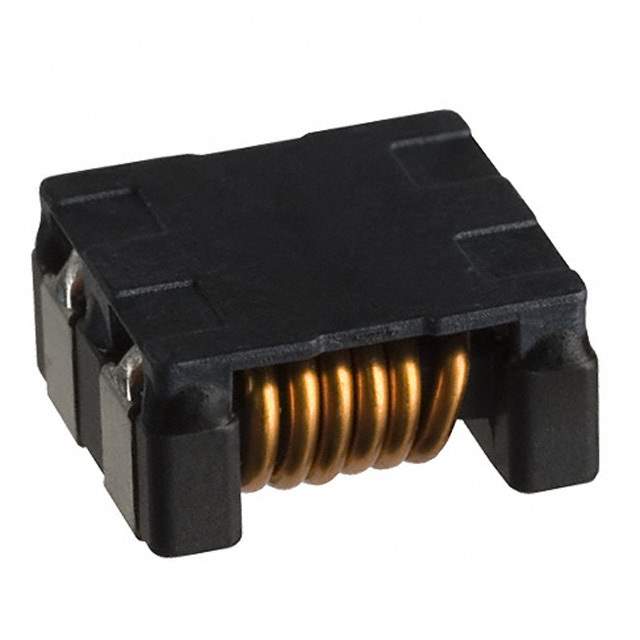

ACM12V-701-2PL-TL Real Image
Same model may have multiple batches, images only for reference.

ACM12V-701-2PL-TL

Part No ACM12V-701-2PL-TL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 8A 2LN 700 OHM SMD AEC-Q200
Datasheet
ACM12V-701-2PL-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 6 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.236" (6.00mm)
Dimension Horizontal, 4 J-Lead
Win Source Part Number 089122-ACM12V-701-2PL-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM12V-701-2PL-TL CAD Model

Description

Product Description

The ACM12V-701-2PL-TL is an advanced component designed for high-efficiency performance in various electronic applications. This component is known for its reliability and robust design, making it ideal for demanding environments.

Features and Benefits

  • High Efficiency: Provides optimal power conversion efficiency.
  • Compact Design: Optimized for space-saving in compact applications.
  • Durability: Built to withstand intensive usage and harsh conditions.

Applications

  • Power Supply Circuits
  • Motor Drives
  • Automotive Electronics

Additional Details

Dimensions and mounting options are designed to facilitate easy integration into existing electronic systems, ensuring flexibility and versatility for your project needs.
