Same model may have multiple batches, images only for reference.

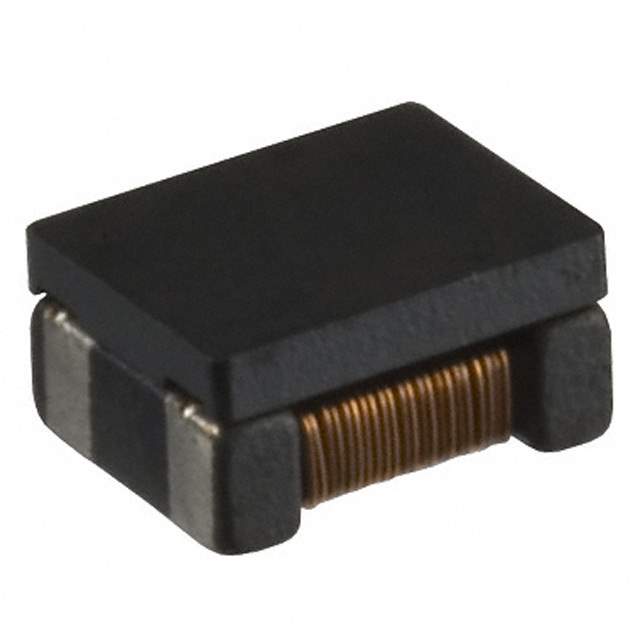

ACM2012-121-2P-T000 Real Image
Same model may have multiple batches, images only for reference.

ACM2012-121-2P-T000

Part No ACM2012-121-2P-T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 370MA 2LN 120 OHM SMD
Datasheet
ACM2012-121-2P-T000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 120 Ohm @ 100MHz
Current Rating (Max) 370mA
DC Resistance (DCR) (Max) 220 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 076780-ACM2012-121-2P-T000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM2012-121-2P-T000 CAD Model

Description

ACM2012-121-2P-T000 - Advanced Chip Ferrite Bead for EMI Control

The ACM2012-121-2P-T000 is engineered for optimal noise filtering, providing significant improvements in signal clarity and system stability.

  • Applications:
    • Industrial Control Systems
    • Communication Devices
    • Healthcare Equipment
  • Features and Benefits:
    • Exceptional attenuation characteristics
    • Reliable performance across a broad temperature range
    • Compact design with high current handling capabilities
  • Additional Details:
    • Size: 2.0 x 1.2 mm
    • Impedance: 120 Ohms at 100 MHz
    • Current Rating: 100 mA
