Same model may have multiple batches, images only for reference.

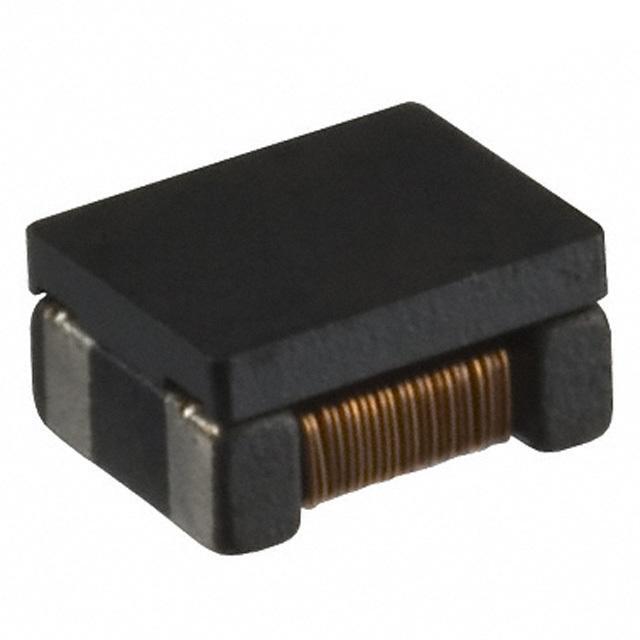

ACM2520-102-2P-T002 TDK Corporation
Same model may have multiple batches, images only for reference.

ACM2520-102-2P-T002

Part No ACM2520-102-2P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 200MA 2LN 1 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 900 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007851-ACM2520-102-2P-T002
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACM2520-102-2P-T002 CAD Model

Description

Product Description for ACM2520-102-2P-T002

Engineered for a balance of performance and cost, the ACM2520-102-2P-T002 provides reliable EMI suppression in a variety of electronic equipment, ensuring seamless operation even in demanding environments.

  • Applications and Projects:
    • Consumer electronics
    • Telecommunication equipment
    • Automotive electronic systems
    • Embedded system applications
  • Features and Benefits:
    • Economical solution for everyday EMI problems
    • Robust design with high durability
    • Reduces signal distortion and aids effective data transmission
  • Additional Details:
    • Compact footprint for varied installation options
    • RoHS Compliant to meet global standards
