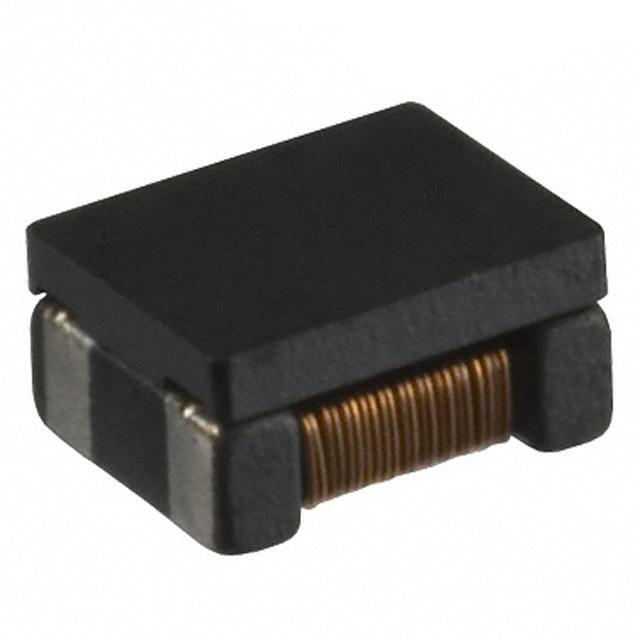

ACM2520-301-2P-T002 TDK Corporation ACM2520-301-2P-T002 Real Image
Same model may have multiple batches, images only for reference.

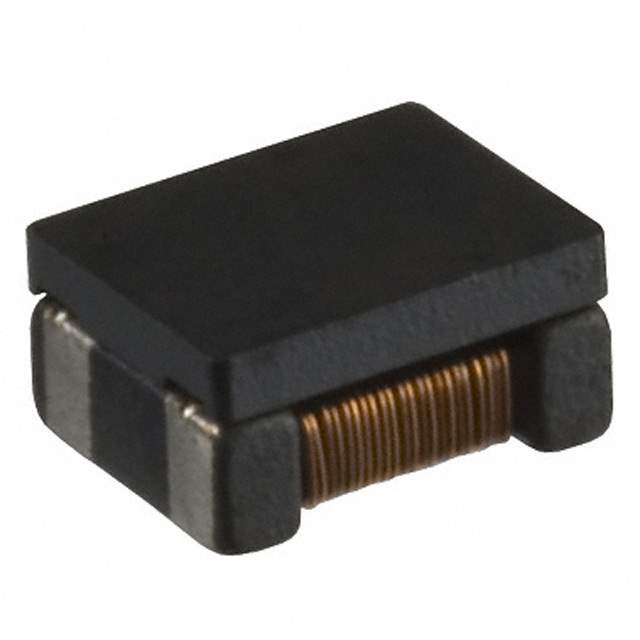

ACM2520-301-2P-T002 TDK Corporation ACM2520-301-2P-T002 Real Image
ACM2520-301-2P-T002 TDK Corporation ACM2520-301-2P-T002 Real Image
Same model may have multiple batches, images only for reference.

ACM2520-301-2P-T002

Part No ACM2520-301-2P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 400MA 2LN 300 OHM SMD
Datasheet
ACM2520-301-2P-T002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 300 Ohm @ 100MHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 350 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 117744-ACM2520-301-2P-T002
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACM2520-301-2P-T002 CAD Model

Description

Product Description for ACM2520-301-2P-T002

The ACM2520-301-2P-T002 is specialized for industrial and technological applications requiring precise EMI noise suppression. It offers dependable performance, enhancing device reliability and efficiency.
