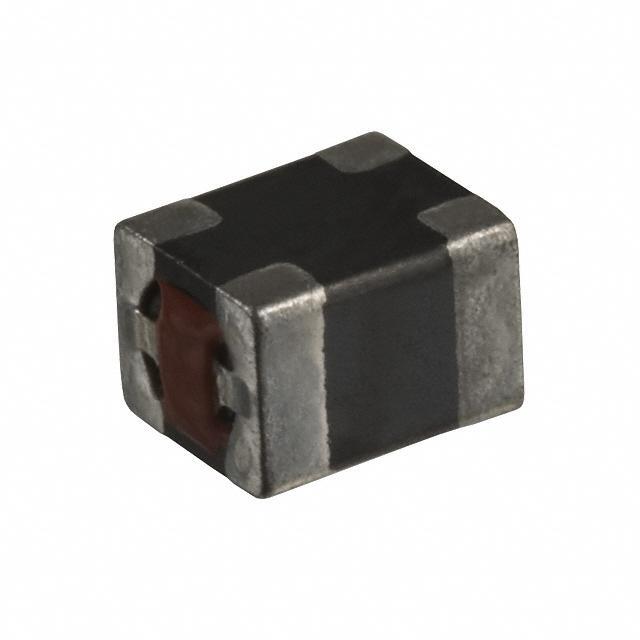

Same model may have multiple batches, images only for reference.

ACM3225-601-2P-T001

Name: ACM3225-601-2P-T001
Brand: TDK Corporation
SKU: 35362
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACM3225-601-2P-T001
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	Common Mode Chokes Dual 600Ohm 100MHz 1A 0.2Ohm DCR SMD T/R / CMC 1A 2LN 600 OHM SMD
Datasheet	ACM3225-601-2P-T001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Obsolete(EOL)
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	600 Ohm @ 100MHz
Current Rating (Max)	1A
DC Resistance (DCR) (Max)	200 mOhm
Voltage Rating - DC	50V
Temperature Range - Operating	-25°C to 85°C
Mounting	SMD (SMT)
Height (Max)	0.091" (2.30mm)
Dimension	1210 (3225 Metric) (4 Leads)
Win Source Part Number	007855-ACM3225-601-2P-T001
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	ACM
Introduction Date	July 04, 2001
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian ACM3225-601-2P-T001 CAD Model

Alternative Products

Description

ACM3225-601-2P-T001

The ACM3225-601-2P-T001 is distinguished by its superior technology and adaptability to various electronic system requirements, ensuring seamless and efficient performance in all applications.

Applications:
- Smart home systems
- LED lighting systems
- Audio and video equipment
- Remote monitoring systems
Features and Benefits:
- High-frequency performance
- Compact and lightweight design
- Wide temperature range tolerance
Additional Details:
- Supports flexible integration
- High-quality build with robust materials
