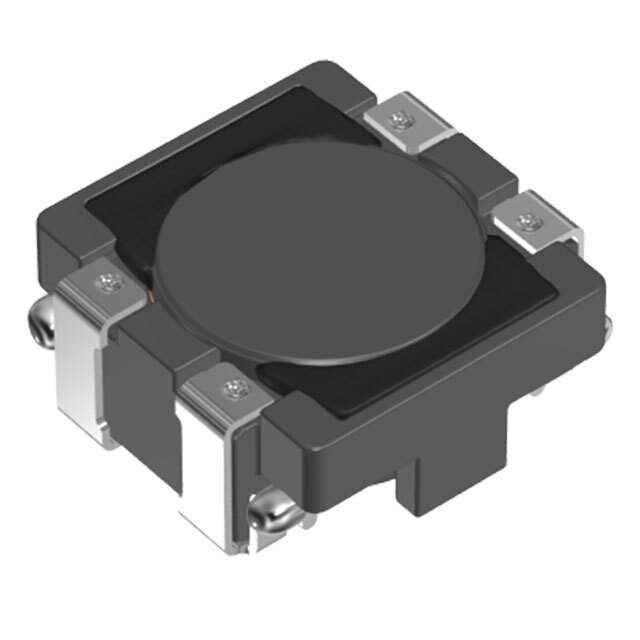

ACM4520V-901-2P-TL00

Name: ACM4520V-901-2P-TL00
Brand: TDK Corporation
SKU: 1131514
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACM4520V-901-2P-TL00
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	CMC 1.2A 2LN 900OHM SMD AEC-Q200 / 2 Line Common Mode Choke Surface Mount 900 Ohms @ 100 MHz 1.2A DCR 60mOhm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	TDK Corporation
Series	ACM-V
Package	Tape & Reel (TR)
Product Status	Not For New Designs
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	900 Ohms @ 100 MHz
Current Rating (Max)	1.2A
DC Resistance (DCR) (Max)	60mOhm
Voltage Rating - DC	50V
Temperature Range - Operating	-40°C ~ 125°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Dimension	0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max)	0.079" (2.00mm)
Package / Case	Horizontal, 4 PC Pad
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Standard Package	2,500
Win Source Part Number	1131514-ACM4520V-901-2P-TL00
Ultra Librarian 3D Model	Ultra Librarian ACM4520V-901-2P-TL00 CAD Model

Alternative Products

Description

The TDK Corporation ACM4520V-901-2P-TL00 is a common mode choke used in filtering power lines manufactured by TDK Corporation.

Type: Common Mode Choke
Application: Filtering Power Lines
Mounting: Surface-Mount
Standard Package: 2,500
AEC-Q200 Rated: Yes
Operating Temperature Range: -40°C to 125°C
Series: ACM-V
Height: 0.079 inches
Length: 0.185 inches
Width: 0.177 inches
