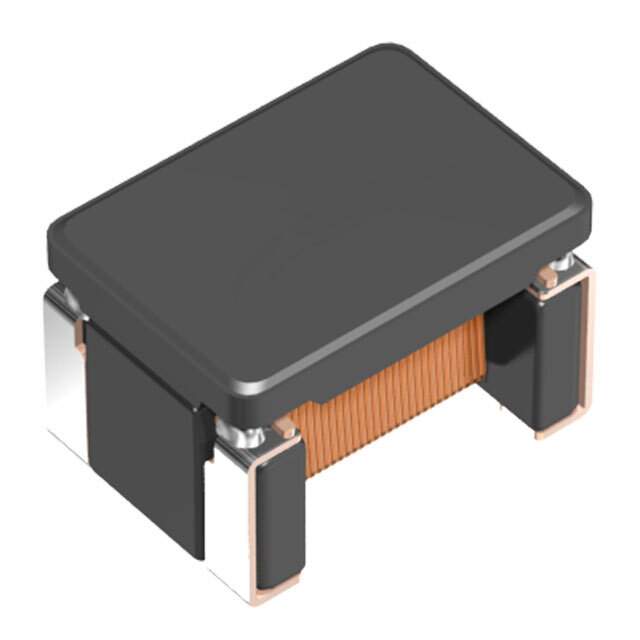

ACT45B-510-2P Real Image
Same model may have multiple batches, images only for reference.

ACT45B-510-2P

Part No ACT45B-510-2P
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 51UH 200MA 2LN SMD AEC-Q200
Datasheet
ACT45B-510-2P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.8 kOhm @ 10MHz
Inductance @ Frequency 51μH @ 100kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1 Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.118" (3.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 091970-ACT45B-510-2P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian ACT45B-510-2P CAD Model

Description

ACT45B-510-2P

The ACT45B-510-2P builds on the capabilities of the ACT45B-510, featuring an additional pin configuration that provides enhanced flexibility in circuit integration. It facilitates highly efficient signal handling within complex electronic systems.

  • Applications: Suitable for use in digital communication systems, and network transmission technologies.
  • Features & Benefits:
    • Dual pin configuration for added versatility.
    • Maintains low insertion loss and superior reliability.
    • Compact and robust design to withstand environmental stressors.

    The additional pin configuration enables seamless integration within multifaceted design frameworks, ensuring optimized performance.
