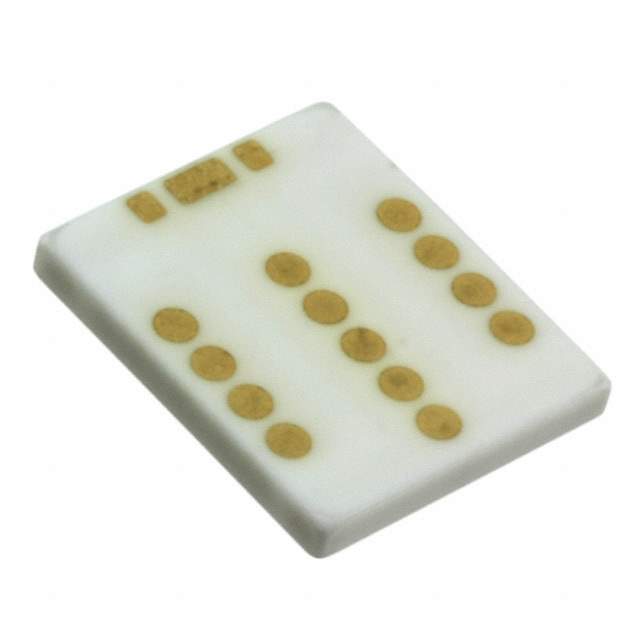

ANT1085-4R1-01A Real Image
Same model may have multiple batches, images only for reference.

ANT1085-4R1-01A

Part No ANT1085-4R1-01A
Manufacturer TDK Corporation
Catalog RF Antennas
Description ANTENNA CHIP UWB 3.1-5.2GHZ
Datasheet
ANT1085-4R1-01A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Frequency Group UHF (3 GHz to 4 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 4.2GHz
Frequency Range 3.1GHz to 5.2GHz
Antenna Type Chip
Number of Bands 1
VSWR 3
Gain 2dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.047" (1.20mm)
Win Source Part Number 1016763-ANT1085-4R1-01A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ANT1085-4R1-01A CAD Model

Description

The TDK Corporation ANT1085-4R1-01A is a chip antenna with a frequency range of 3.1GHz to 5.2GHz.

  • Category: RF/IF and RFID
  • Frequency Group: UHF (3 GHz to 4 GHz), SHF (f > 4 GHz)
  • Mounting: Surface-mountable
  • Height: 0.047" (1.20mm)
  • Gain: 2dBi
  • VSWR: 3
  • Band: Single
  • Frequency (center/band): 4.2GHz
  • Termination: Solder
  • Return Loss: Not specified
  • Maximum Power Dissipation: Not specified
  • Status: Obsolete (EOL)
  • Supply and Demand: Balanced
