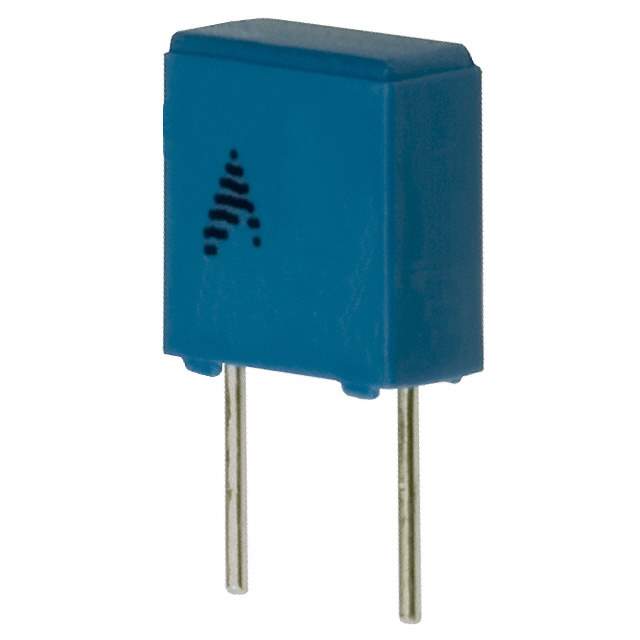

B32529C684J289 Real Image
Same model may have multiple batches, images only for reference.

B32529C684J289

Part No B32529C684J289
Manufacturer TDK Corporation
Catalog Film Capacitors
Description Cap Film 0.68uF 63V PET 5% (7.3 X 4.5 X 9.5mm) Radial Stacked 5mm 125C Automotive Ammo
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 680 nF
Case / Package Radial
Depth 4.5 mm
Dielectric PET
Dielectric Material PET
Height - Seated (Max) 9.4996 mm
Lead Diameter 500 µm
Lead Free Lead Free
Lead Length 6 mm
Lead Pitch 5 mm
Length 7.2898 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Packaging Tape & Box (TB)
Radiation Hardening No
RoHS Compliant
Schedule B 8532250010, 8532250010
Termination Radial
Tolerance 5 %
Voltage Rating (AC) 40 V
Voltage Rating (DC) 63 V
Width 4.4958 mm
Win Source Part Number 1208988-B32529C684J289
Categories Film Capacitors
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B32529C684J289 CAD Model

Description

The TDK Corporation B32529C684J289 is a radial film capacitor with a capacitance of 680 nF and a voltage rating of 40V AC and 63V DC.

  • Tolerance: 5%
  • Operating Temperature Range: -55 °C to 125 °C
