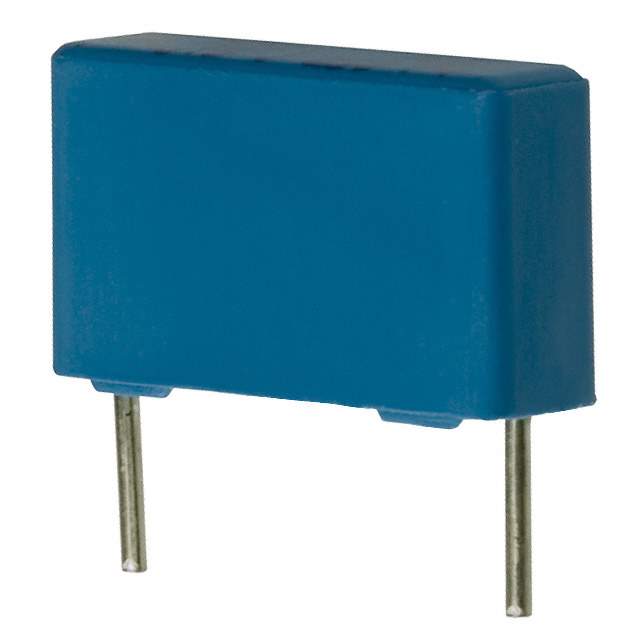

B32652A223J189 Real Image
Same model may have multiple batches, images only for reference.

B32652A223J189

Part No B32652A223J189
Manufacturer TDK Corporation
Catalog Film Capacitors
Description Film Capacitor, 0.022 uF, 250 V, 1000 V, ± 5%, Metallized PP, Radial Box - 2 Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 22 nF
Case / Package Radial
Depth 5 mm
Dielectric PP
Dielectric Material Polypropylene
Lead Diameter 800 µm
Lead Pitch 15 mm
Length 18 mm
Max Operating Temperature 100 °C
Min Operating Temperature -55 °C
Mount Through Hole
RoHS Compliant
Termination Radial
Tolerance 5 %
Voltage Rating (AC) 700 V
Voltage Rating (DC) 2 kV
Win Source Part Number 1166912-B32652A223J189
Categories Film Capacitors
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B32652A223J189 CAD Model

Description

The B32652A223J189 from TDK Corporation is a radial film capacitor with a capacitance of 22 nF and a tolerance of 5%.

  • Type: Radial Film Capacitor
  • Capacitance: 22 nF
  • Tolerance: 5%
  • Dielectric Material: Polypropylene
  • Voltage Rating (DC): 2 kV
  • Voltage Rating (AC): 700 V
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Alternative Parts Available: Yes
