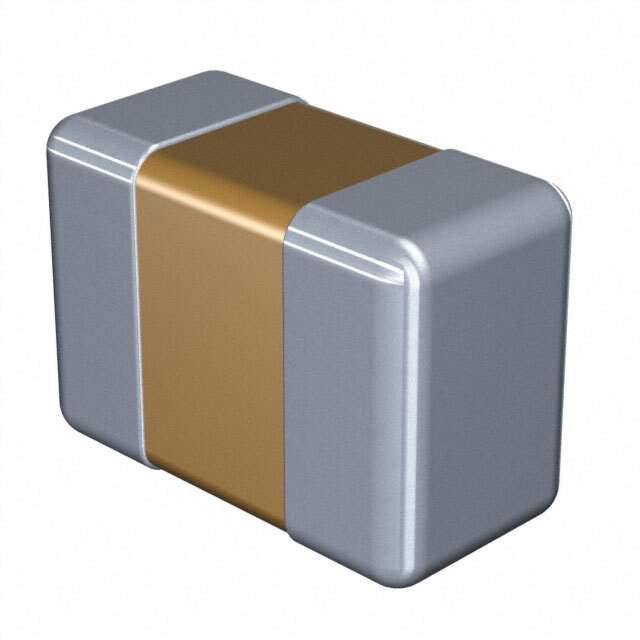

The C1005X6S0G475MTJ00E is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits for various purposes, including bypassing, decoupling, filtering, and energy storage. This particular capacitor features a specific combination of characteristics tailored for particular applications.

Applications

• Bypassing: Used to bypass AC signals to ground, reducing noise in circuits.
• Decoupling: Provides a local energy source for ICs, stabilizing the power supply voltage.
• Filtering: Filters unwanted frequencies from a signal.
• Resonant Circuits: Used in resonant circuits, such as in oscillators.
• Consumer Electronics: Common in smartphones, tablets, and other portable devices.

Features

• Capacitance: 0.47µF (Microfarads).
• Voltage Rating: 4V DC.
• Temperature Coefficient: X6S. X6S indicates a temperature coefficient within ±22% from -55°C to +105°C.
• Case Size: 0402 (1005 Metric). This refers to the physical dimensions of the capacitor (1.0mm x 0.5mm).
• Termination: Sn (Tin).
• High Reliability: MLCCs are known for their reliability and long lifespan.
• Small Size: The 0402 case size allows for high-density mounting on PCBs.

Benefits

• Effective Noise Reduction: The bypassing and decoupling capabilities of this capacitor contribute to reduced noise and improved signal integrity in electronic circuits.
• Stable Performance over Temperature: The X6S temperature characteristic ensures relatively stable capacitance over a wide temperature range.
• Compact Design: The small 0402 case size allows for space-saving designs.
• Long Lifespan: MLCCs offer a long operational life, contributing to the overall reliability of the end product.
• Cost-Effective: MLCCs are generally cost-effective components for a wide range of applications.

Additional Details

The C1005X6S0G475MTJ00E capacitor utilizes a ceramic dielectric material. The 'MTJ' portion of the part number likely refers to TDK's internal manufacturing code or packaging details. It is important to consult the manufacturer's datasheet for complete specifications, including tolerance, ESR (Equivalent Series Resistance), and other performance characteristics. Proper handling and soldering techniques are crucial when working with small SMD components like this capacitor.
