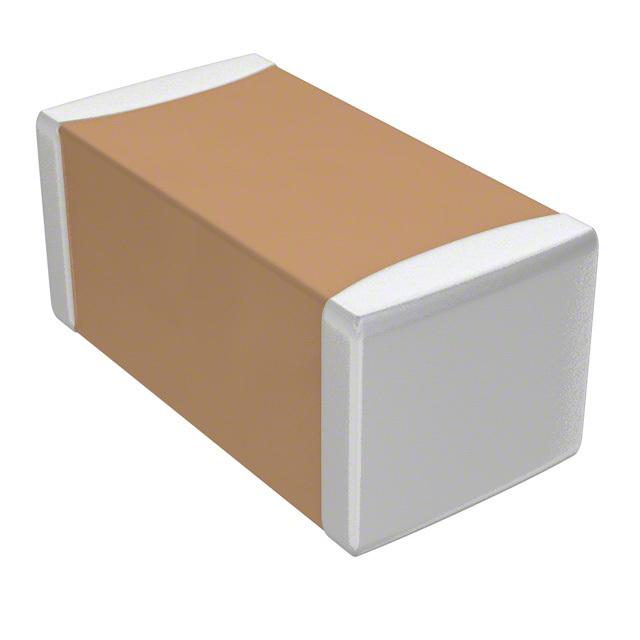

C3216X5R1A226M160AC TDK Corporation
Same model may have multiple batches, images only for reference.

C3216X5R1A226M160AC

Part No C3216X5R1A226M160AC
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 22UF 10V X5R 1206
Datasheet
C3216X5R1A226M160AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 22μF
Tolerance ±20%
Voltage Rating 10V
Temperature Coefficient X5R
Temperature Range - Operating -55°C to 85°C
Features Low ESL
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.071" (1.80mm)
Win Source Part Number 1027171-C3216X5R1A226M160AC
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Communications & Networking, Power Management
Ultra Librarian 3D Model Ultra Librarian C3216X5R1A226M160AC CAD Model

Description

The TDK Corporation C3216X5R1A226M160AC is a surface mount MLCC capacitor with a capacitance of 22μF and a tolerance of ±20%.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • ESL: Low
  • Voltage Rating: 10V
  • Temperature Coefficient: X5R
  • Temperature Range: -55°C to 85°C
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Application: General Purpose
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Application Field: Consumer electronics, communications, and power management
