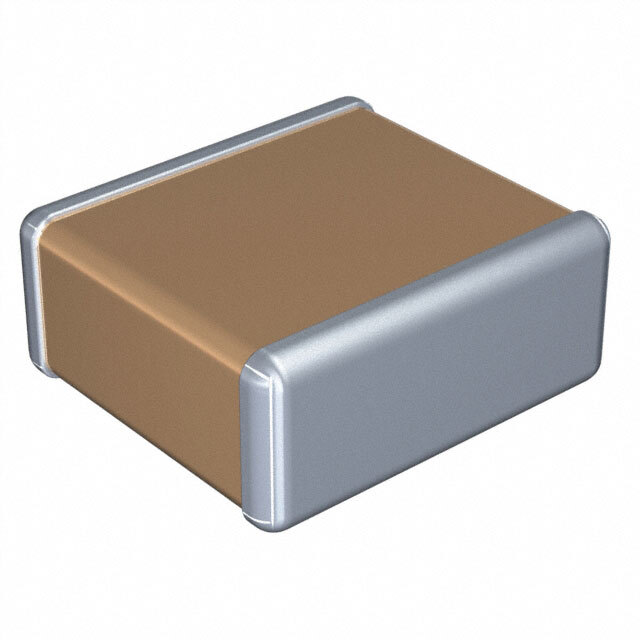

Same model may have multiple batches, images only for reference.
C7563X7S1H226M230LE TDK Corporation
Same model may have multiple batches, images only for reference.

C7563X7S1H226M230LE

Part No C7563X7S1H226M230LE
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description MULTILAYER CERAMIC CHIP CAPACITORS | CAP CER 22UF 50V X7S 3025
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel
Capacitance 22μF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient X7S
Temperature Range - Operating -55°C ~ 125°C
Features Soft Termination
Applications Boardflex Sensitive
Mounting Style SMT, MLCC
Manufacturer Package 3025 (7563 Metric)
Parts Dimension 0.295" L x 0.248" W (7.50mm x 6.30mm)
Thickness (Maximum) 0.098" (2.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 752552-C7563X7S1H226M230LE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C7563X7S1H226M230LE CAD Model

Description

The C7563X7S1H226M230LE capacitor from TDK Corporation is an excellent solution for a variety of applications.

  • Capacitance: 22μF
  • Voltage Rating: 50V
  • Features: soft termination
  • Suitable for: use in boardflex sensitive applications.
  • Series: part of the ACM-V series
  • Size: 0.295" L x 0.248" W (7.50mm x 6.30mm)
  • Package: available on a reel with a standard package of 1.
