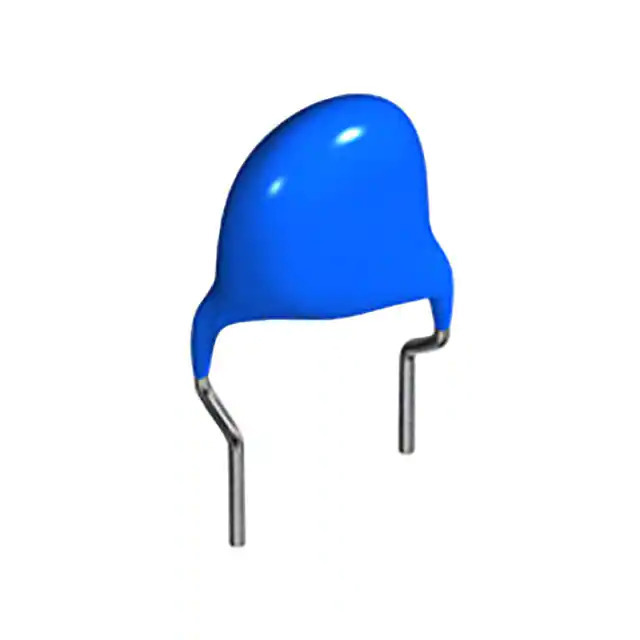

CC45SL3DD101JYGNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3DD101JYGNA

Part No CC45SL3DD101JYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 2KV SL RADIAL / 100 pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Product Status Active
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 2000V (2kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359946-CC45SL3DD101JYGNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3DD101JYGNA CAD Model

Description

The CC45SL3DD101JYGNA is a ceramic capacitor from TDK Corporation. It is part of the CC45 series and has a capacitance of 100 pF with a tolerance of ±5%.

  • Capacitance: 100 pF
  • Tolerance: ±5%
  • Voltage Rating: 2000V (2kV)
  • Mounting Type: Through-Hole
  • Package: Radial, Disc
  • Lead Spacing: 0.197" (5.00mm)
  • Diameter: 0.295" (7.50mm)
  • Height: 0.453" (11.50mm)
  • Operating Temperature Range: -25°C to 125°C
  • Features: High Voltage, Low Dissipation Factor
  • Product Status: Active
