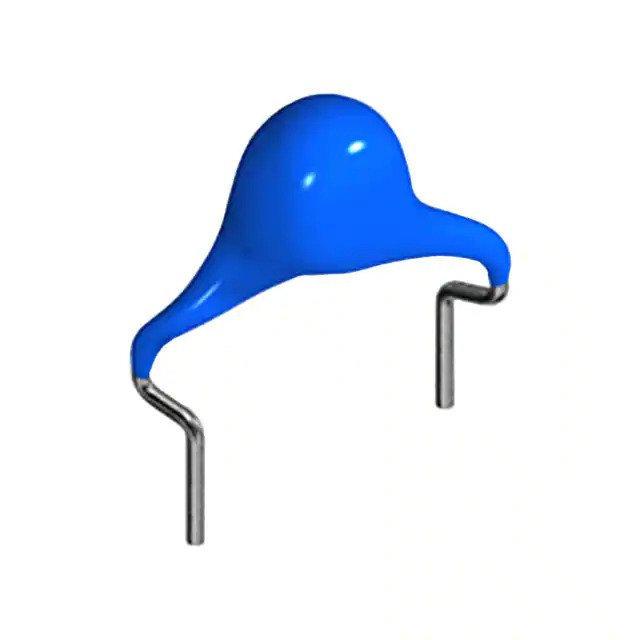

Same model may have multiple batches, images only for reference.
CC45SL3FD100JYGNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3FD100JYGNA

Part No CC45SL3FD100JYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10PF 3KV SL RADIAL / 10 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Product Status Active
Capacitance 10 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359964-CC45SL3FD100JYGNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3FD100JYGNA CAD Model

Description

The CC45SL3FD100JYGNA is a ceramic capacitor from TDK Corporation.

  • Series: CC45
  • Applications: General Purpose
  • Capacitance: 10 pF
  • Voltage - Rated: 3000V (3kV)
  • Tolerance: ±5%
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size / Dimension: 0.217" Dia (5.50mm)
  • Height - Seated (Max): 0.374" (9.50mm)
  • Operating Temperature: -25°C ~ 125°C
  • Packaging: Bulk
  • Status: Active
