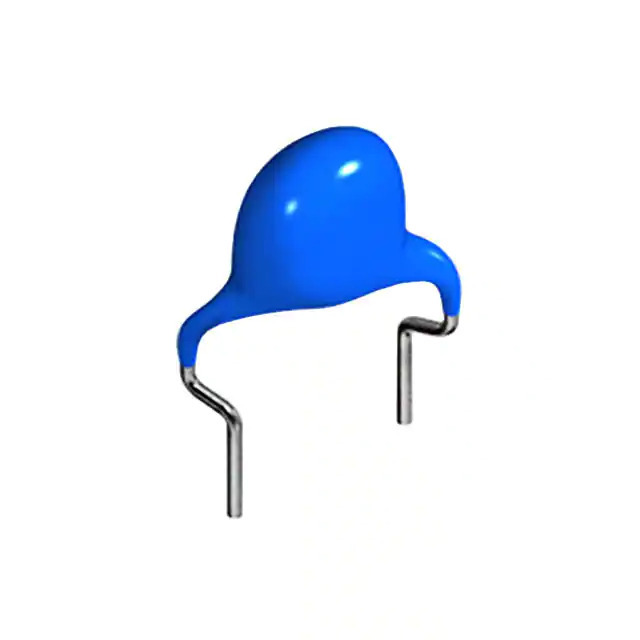

Same model may have multiple batches, images only for reference.
CC45SL3JD150JYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3JD150JYVNA

Part No CC45SL3JD150JYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 15PF 6KV SL RADIAL / 15 pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Product Status Active
Capacitance 15 pF
Tolerance ±5%
Voltage - Rated 6000V (6kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.295" Dia (7.50mm)
Height - Seated (Max) 0.453" (11.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359998-CC45SL3JD150JYVNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3JD150JYVNA CAD Model

Description

The CC45SL3JD150JYVNA is a high voltage ceramic capacitor manufactured by TDK Corporation.

  • Series: CC45
  • Capacitance: 15 pF
  • Tolerance: ±5%
  • Voltage Rating: 6000V (6kV)
  • Mounting Type: Through Hole
  • Package / Case: Radial, Disc
  • Size / Dimension: 0.295" (7.50mm)
  • Height - Seated (Max): 0.453" (11.50mm)
  • Temperature Coefficient: SL
  • ECCN: EAR99
  • Status: Active
