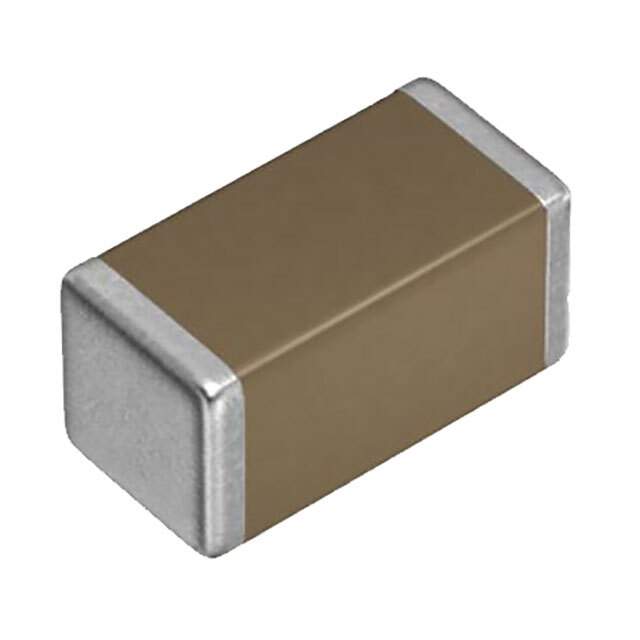

The CGA2B3X7R1H104KT0Y0F is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It's designed for general-purpose applications requiring a stable and reliable capacitor with specific capacitance and voltage ratings.

Applications

• Decoupling capacitors in power supplies
• Bypass capacitors in digital circuits
• Smoothing capacitors in analog circuits
• Filtering in various electronic circuits
• General purpose applications in electronic devices

Features

• High Capacitance: Offers a capacitance value of 100nF (0.1µF), suitable for many decoupling and filtering applications.
• Voltage Rating: Rated for 50V, allowing its use in a variety of low to medium voltage circuits.
• X7R Dielectric: Uses X7R dielectric material, which provides stable performance over a wide temperature range (-55°C to +125°C).
• Compact Size: Small form factor (0805) makes it suitable for high-density circuit board designs.
• RoHS Compliant: Compliant with RoHS directives, ensuring environmental friendliness.

Benefits

• Stable Performance: The X7R dielectric ensures minimal capacitance variation with temperature and voltage changes.
• Reliable Operation: Manufactured by TDK, a reputable manufacturer known for high-quality electronic components.
• Space Saving: Small size allows for efficient use of board space.
• Wide Temperature Range: Operates reliably in harsh environments with temperatures ranging from -55°C to +125°C.
• Cost-Effective: Provides a balance of performance and affordability for general-purpose applications.

Additional Details

This capacitor features a ceramic dielectric and is constructed using multilayer technology. It's suitable for reflow soldering. The termination finish is typically matte tin plating, ensuring good solderability. The specific case size is 0805. Its X7R dielectric means that the capacitance changes within ±15% from -55°C to +125°C.
