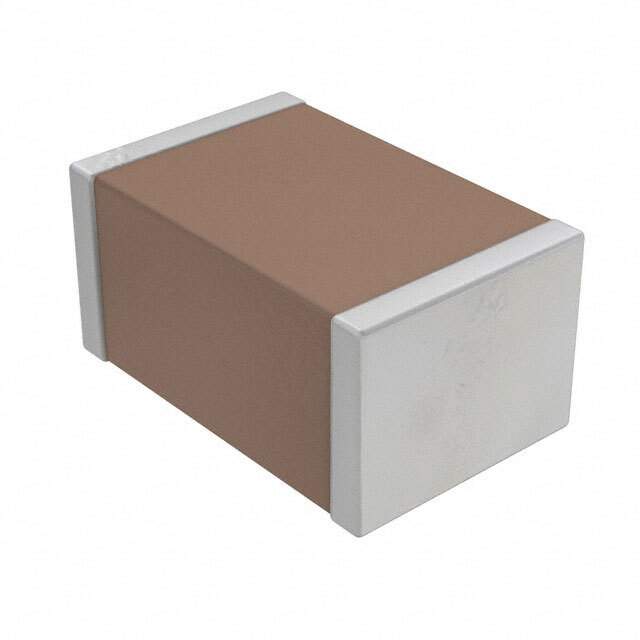

The CGA4C4C0G2W101J060AA is a ceramic capacitor manufactured by TDK Corporation. It belongs to the CGA series, known for its reliability and performance in various electronic circuits. These capacitors are widely used for decoupling, bypassing, and filtering applications.

Applications

• Mobile Phones: Used for decoupling power supplies and filtering signals.
• Wireless Communication Devices: Employed in RF circuits for impedance matching and filtering.
• Consumer Electronics: Found in devices such as TVs, audio players, and gaming consoles for noise reduction and signal stabilization.
• Automotive Electronics: Utilized in ECU (Engine Control Unit) and infotainment systems for reliable operation in harsh environments.
• Industrial Equipment: Used in power supplies and control circuits for stable performance.

Features

• High Capacitance Value: 100pF capacitance suitable for a wide range of applications.
• COG (NP0) Dielectric: Offers excellent temperature stability and low loss.
• Small Case Size: Compact 0402 (1005 Metric) package for space-constrained designs.
• High Voltage Rating: Rated for 450V, providing robust performance in high-voltage circuits.
• RoHS Compliant: Meets environmental standards for hazardous substance control.

Benefits

• Improved Circuit Stability: Provides stable performance over a wide temperature range, ensuring reliable operation.
• Noise Reduction: Effectively reduces noise and ripple in power supplies and signal lines.
• Space Saving: Small size allows for high-density circuit designs.
• Long Lifespan: High-quality materials and construction ensure long-term reliability.
• Cost-Effective: Provides excellent performance at a competitive price point.

Additional Details

The CGA4C4C0G2W101J060AA capacitor utilizes a COG (NP0) dielectric material, which exhibits a minimal change in capacitance over a wide temperature range (-55°C to +125°C). This makes it ideal for applications where temperature stability is critical. The capacitor's 0402 case size (1.0mm x 0.5mm) allows for high-density mounting on printed circuit boards (PCBs). The termination finish is typically nickel barrier with tin plating, ensuring excellent solderability. The capacitor is designed to withstand reflow soldering processes. It meets the stringent requirements of RoHS compliance, making it suitable for use in environmentally conscious applications.
