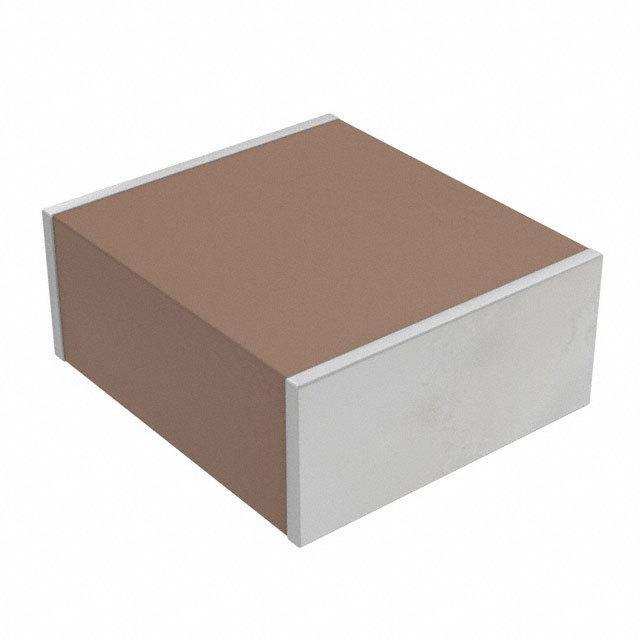

Same model may have multiple batches, images only for reference.
CGA9N3X7R2E105K230KA TDK Corporation
Same model may have multiple batches, images only for reference.

CGA9N3X7R2E105K230KA

Part No CGA9N3X7R2E105K230KA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Automotive Grade ( Mid Voltage (100 to 630V) )
Datasheet
CGA9N3X7R2E105K230KA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CGA
Packaging Reel - TR
Capacitance 1μF
Tolerance ±10%
Voltage Rating DC 250V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Package 2220 (5750 Metric)
Size 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.091" (2.30mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 752614-CGA9N3X7R2E105K230KA
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name CGA9
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CGA9N3X7R2E105K230KA CAD Model

Description

The TDK Corporation CGA9N3X7R2E105K230KA is a surface mount MLCC with a capacitance of 1μF and a tolerance of ±10%.

  • Capacitance: 1μF
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Voltage Rating DC: 250V
  • Applications: Automotive
  • Supply and Demand Status: Limited
  • Win Source Part Number: 752614-CGA9N3X7R2E105K230KA
