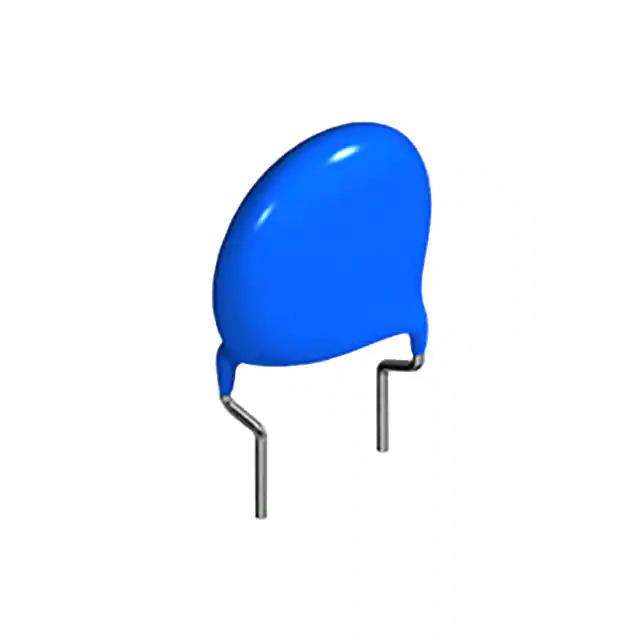

CK45-B3FD222KYNNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3FD222KYNNA

Part No CK45-B3FD222KYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 3KV RADIAL / 2200 pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360007-CK45-B3FD222KYNNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD222KYNNA CAD Model

Description

The CK45-B3FD222KYNNA is a high voltage ceramic capacitor manufactured by TDK Corporation.

  • Series: CK45
  • Package: Bulk
  • Capacitance: 2200 pF
  • Voltage Rating: 3000V
  • Applications: General Purpose
  • Tolerance: ±10%
  • Operating Temperature: -25°C ~ 105°C
  • Lead Spacing: 0.295" (7.50mm)
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 0.650" (16.50mm)
  • Failure Rate: -
  • Temperature Coefficient: B
