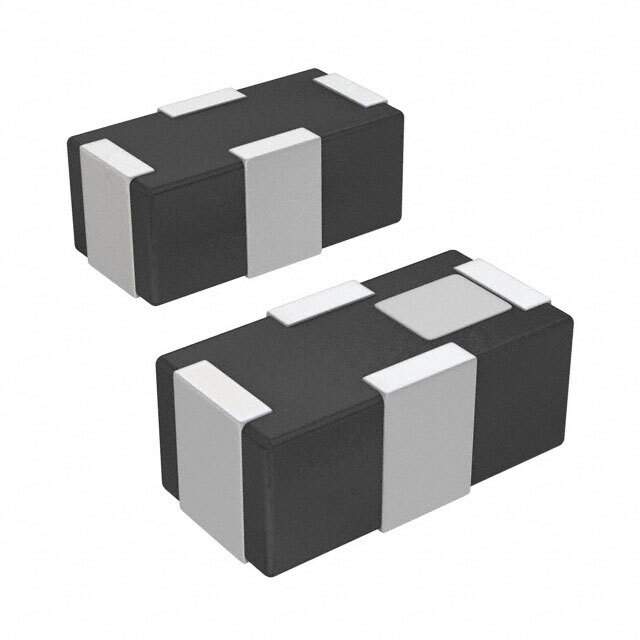

DEA105425BT-1293A1 Real Image
Same model may have multiple batches, images only for reference.

DEA105425BT-1293A1

Part No DEA105425BT-1293A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BANDPASS 5.425GHZ 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features 5.425GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 0.73dB 0402 (1005 Metric), 4 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Mounting Surface Mount
Package 0402 (1005 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-15652-6, 445-15652-1, 445-15652-2
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916863-DEA105425BT-1293A1
Ultra Librarian 3D Model Ultra Librarian DEA105425BT-1293A1 CAD Model

Description

The TDK Corporation electronic component with Win Source Part Number 916863-DEA105425BT-1293A1 is a part of the DEA series.

  • Product Type: RF Filter
  • Bandwidth: 0.73dB
  • Center Frequency: 5.425GHz
  • Package: 0402 (1005 Metric), 4 PC Pad
  • Mounting Type: Surface Mounted
  • Package Type: Reel - TR
  • Quantity per Package: 10000
  • Estimated Production Lead Time: 9 weeks
  • Supply and Demand Status: Balanced
