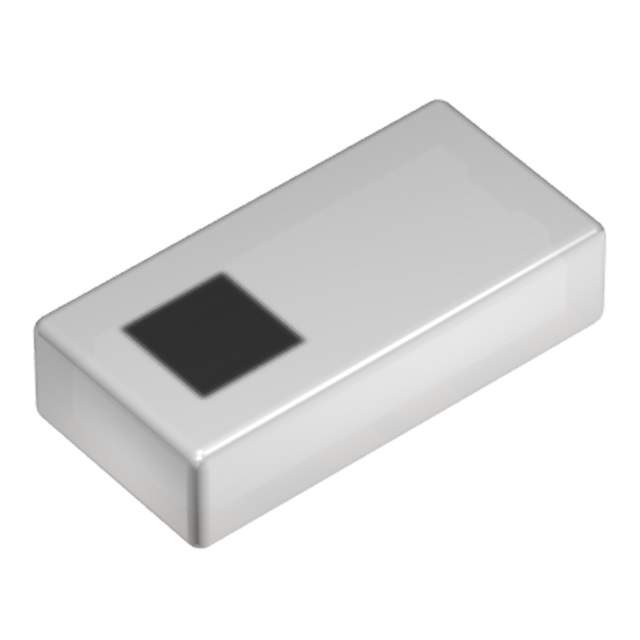

DEA162690LT-5057C1 Real Image
Same model may have multiple batches, images only for reference.

DEA162690LT-5057C1

Part No DEA162690LT-5057C1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS 2.2GHZ 0603 / 2.2GHz Center Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 0.5dB 0603 (1608 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Frequency 2.2GHz Center
Filter Type Low Pass
Insertion Loss 0.5dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 4 PC Pad
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-181432-6,445-181432-2,445-181432-1
Standard Package 4,000
Win Source Part Number 1030414-DEA162690LT-5057C1
Ultra Librarian 3D Model Ultra Librarian DEA162690LT-5057C1 CAD Model

Description

The DEA162690LT-5057C1 is a low pass RF filter under the DEA series.

  • Manufacturer: TDK Corporation
  • Package: Tape and reel
  • Standard Package: 4,000
  • Mounting: Surface-mount technology (SMT)
  • Frequency: 2.2GHz center
  • Insertion Loss: 0.5dB
  • Height (max): 0.028" (0.70mm)
  • RoHS: Unaffected
  • ECCN: EAR99
