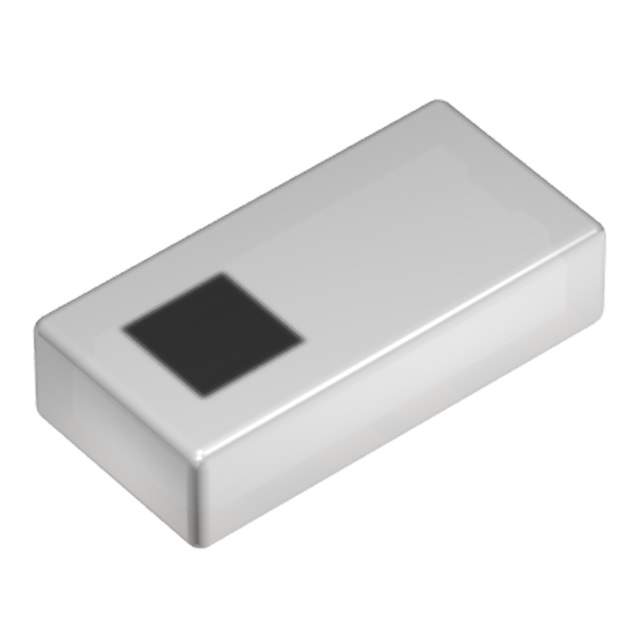

DEA162690LT-5064A1 Real Image
Same model may have multiple batches, images only for reference.

DEA162690LT-5064A1

Part No DEA162690LT-5064A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LO PASS 1.6945GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel
Frequency 1.6945GHz Center
Bandwidth 1.991GHz
Filter Type Low Pass
Insertion Loss 0.18dB
Mounting Style SMD
Manufacturer Package 0603 (1608 Metric), 4 PC Pad
Parts Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Maximum) 0.028" (0.70mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 718213-DEA162690LT-5064A1
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA162690LT-5064A1 CAD Model

Description

The TDK Corporation DEA162690LT-5064A1 is a low pass filter that has a frequency of 1.6945GHz center.

  • Insertion Loss: 0.18dB
  • Bandwidth: 1.991GHz
  • Package: Reel
  • Mounting Type: SMD
  • Category: Filters
  • Manufacturer Package: 0603 (1608 Metric), 4 PC Pad
  • Parts Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height (Maximum): 0.028" (0.70mm)
  • Manufacturer Pack: 1 piece
