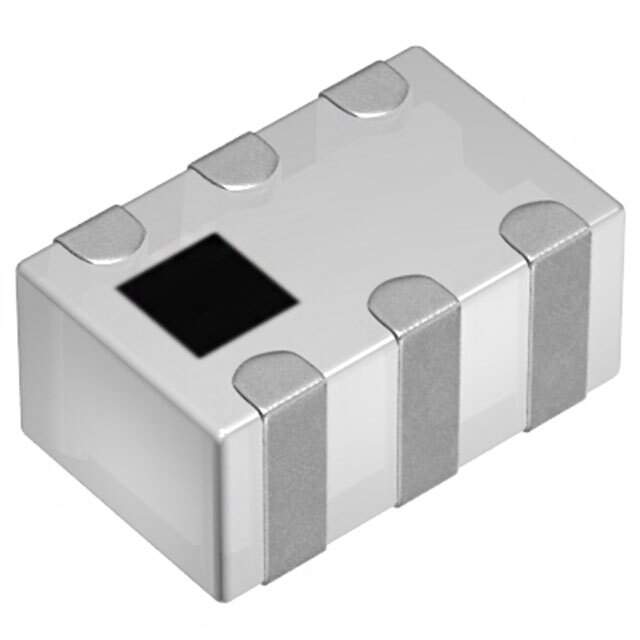

DPX202690DT-4060A1 Real Image
Same model may have multiple batches, images only for reference.

DPX202690DT-4060A1

Part No DPX202690DT-4060A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 0805 6 PC PAD / RF Diplexer 0805 (2012 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
High Band Attenuation (min / max dB) 20.00dB / 24.00dB
Return Loss (Low Band / High Band) 10.0dB / 10.0dB
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 445-175627-6,445-175627-2,445-175627-1
Standard Package 2,000
Win Source Part Number 1164359-DPX202690DT-4060A1
Ultra Librarian 3D Model Ultra Librarian DPX202690DT-4060A1 CAD Model

Description

The DPX202690DT-4060A1 is a diplexer designed for use in RF multiplexers.

  • Application: RF Multiplexers
  • Packaging: Tape and Reel
  • Package/Case: 0805 (2012 Metric), 6 PC Pad
  • Win Source Part Number: 1164359-DPX202690DT-4060A1
  • Series: DPX
  • High Band Attenuation: 20.00dB / 24.00dB
  • Return Loss (Low Band / High Band): 10.0dB / 10.0dB
  • Alternative Parts: DPX202690DT4060A1
  • Manufacturer: Unknown
  • Product Name: DPX202690DT-4060A1
