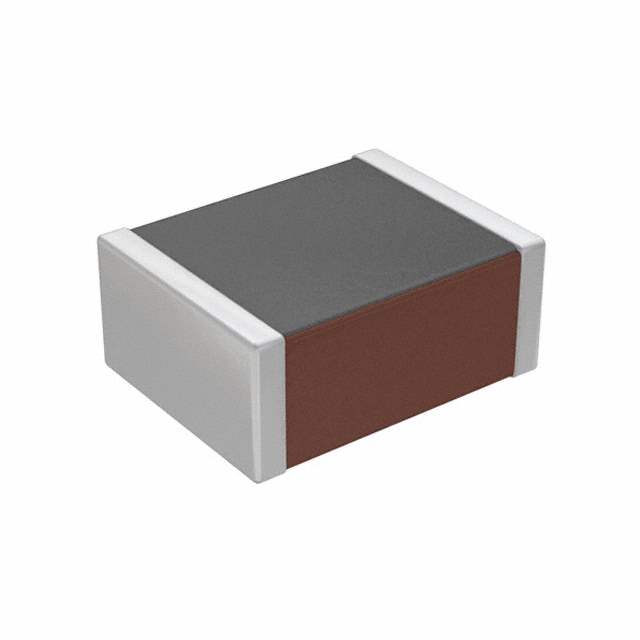

HF30ACB322513-T Real Image
Same model may have multiple batches, images only for reference.

HF30ACB322513-T

Part No HF30ACB322513-T
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 31 OHM 1210 1LN
Datasheet
HF30ACB322513-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 31 Ohm @ 100MHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 300 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.059" (1.50mm)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Win Source Part Number 016925-HF30ACB322513-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HF30ACB322513-T CAD Model

Description

TDK Corporation 016925-HF30ACB322513-T is a signal line filter.

  • Impedance: 31 Ohm at 100MHz
  • Maximum Current Rating: 400mA
  • Type: Single-line SMD (SMT)
  • Height: 0.059 inches
  • Dimension: 0.126 inches in length and 0.098 inches in width
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 125°C
