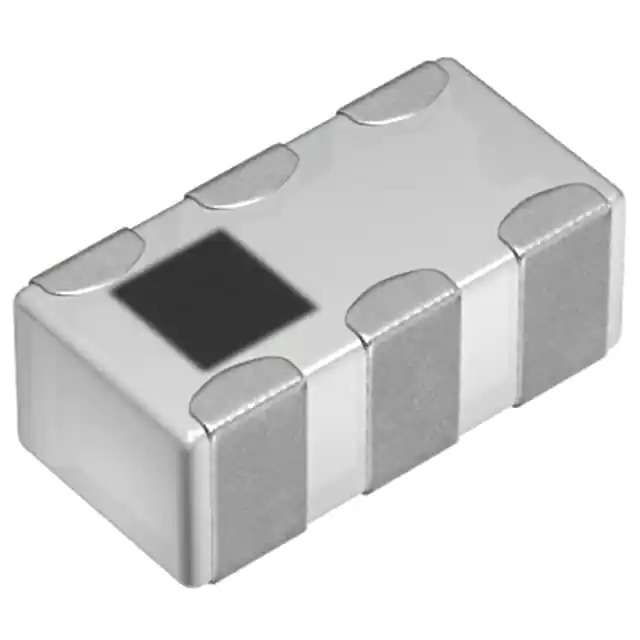

Same model may have multiple batches, images only for reference.
HHM1711Q1 TDK Corporation
Same model may have multiple batches, images only for reference.

HHM1711Q1

Part No HHM1711Q1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 2.3GHZ-3.8GHZ 50/100 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Product Status Active
Frequency Range 2.3GHz ~ 3.8GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 180° ±15°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Package / Case 0603 (1608 Metric), 6 PC Pad
Mounting Type Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1373200-HHM1711Q1
Ultra Librarian 3D Model Ultra Librarian HHM1711Q1 CAD Model

Description

The 1373200-HHM1711Q1 is a surface mount balun from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Mounting Type: Surface Mount
  • Series: HHM
  • Application: RF, Wireless
  • Package Size: 0603 (1608 Metric), 6 PC pad
  • Frequency Range: 2.3GHz to 3.8GHz
  • Impedance: 50/100Ohm (unbalanced/balanced)
  • Phase Difference: 180° ±15°
  • Insertion Loss: 1.0dB max
  • Return Loss: 10dB min
  • Packaging: Tape and Reel
  • ECCN Compliance: Yes
  • ECCN: EAR99
