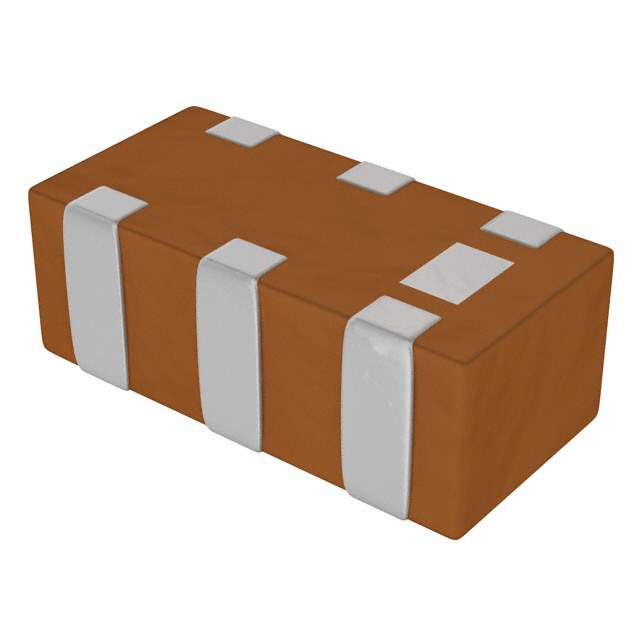

The 0900BL15C050 is a miniature balun from Johanson Technology Inc. designed for impedance balancing in a variety of RF applications. It facilitates the connection between balanced and unbalanced circuits, minimizing signal loss and optimizing performance.

Applications

• Bluetooth applications
• Wi-Fi applications (2.4 GHz ISM band)
• Zigbee applications
• Wireless LAN (WLAN) devices
• RF transceivers

Features

• Surface Mount Device (SMD)
• Compact Size (typically 0603 or smaller)
• Impedance Transformation: 50 Ohms to Balanced Impedance (e.g., 100 Ohms)
• Low Insertion Loss
• High Isolation
• RoHS Compliant

Benefits

• Miniaturized form factor enables use in compact wireless devices.
• Efficient signal transmission with minimal loss.
• Improved signal integrity due to impedance matching.
• Reduced interference and improved performance with high isolation.
• Compliance with environmental regulations.

Additional Details

The 0900BL15C050 operates in the frequency range centered around 900 MHz. Specific impedance ratios may vary depending on the exact model. The balun is designed for automated assembly using standard SMT (Surface Mount Technology) processes. The insertion loss is typically less than 1 dB, and the return loss is greater than 15 dB. It's constructed using ceramic materials, ensuring high reliability and stability over a wide temperature range. It is often used near RF transceivers to properly interface single ended outputs from an RF IC to differential inputs of a receiver, or differential outputs of a transmitter to a single ended antenna.
