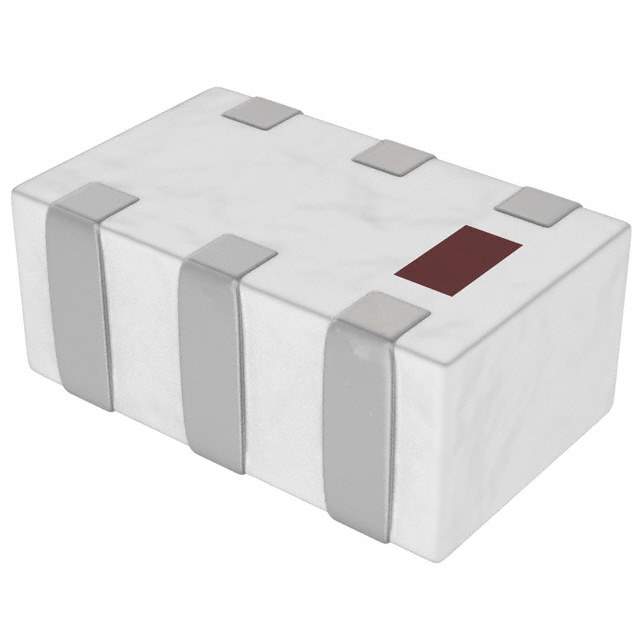

1600BL15B050E Real Image
Same model may have multiple batches, images only for reference.

1600BL15B050E

Part No 1600BL15B050E
Manufacturer Johanson Technology Inc.
Catalog Balun
Description BALUN 1.5GHZ-1.7GHZ 50/50 0805  /  RF Balun 1.5GHz ~ 1.7GHz 50 / 50Ohm 0805 (2012 Metric)
Datasheet
1600BL15B050E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Mfr Johanson Technology Inc.
Series 1600
Package Tape & Reel
Frequency Range 1.5GHz ~ 1.7GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 180° ±10°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 9.5dB
Package / Case 0805 (2012 Metric)
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 712-1026-2,712-1026-1,1600BL15B050,712-1026-6
Standard Package 4,000
Win Source Part Number 975260-1600BL15B050E
Ultra Librarian 3D Model Ultra Librarian 1600BL15B050E CAD Model

Description

The 1600BL15B050E balun from Johanson Technology Inc. is a surface mount device.

  • Frequency Range: 1.5GHz to 1.7GHz
  • Impedance (Balanced/Unbalanced): 50/50 Ohms
  • Phase Difference: 180 degrees +/-10 degrees
  • Insertion Loss: 1.0dB (Max)
  • Return Loss: 9.5dB (Min)
  • Package Size: 0805 (2012 Metric)
  • Standard Package: 4,000
  • REACH: Unaffected
  • ECCN: EAR99
