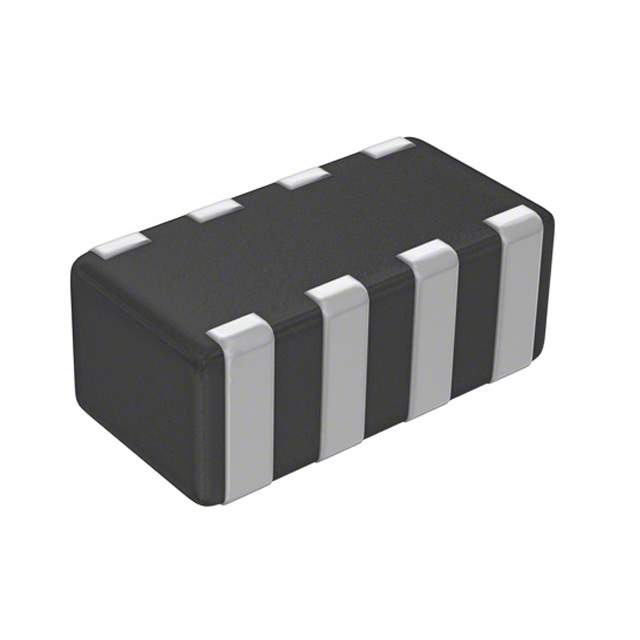

MCZ2010AH900T000 Real Image
Same model may have multiple batches, images only for reference.

MCZ2010AH900T000

Part No MCZ2010AH900T000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 4LN 90 OHM SMD
Datasheet
MCZ2010AH900T000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 1.5 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0804 (2010 Metric), 8 Lead
Win Source Part Number 317973-MCZ2010AH900T000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian MCZ2010AH900T000 CAD Model

Description

The TDK MCZ2010AH900T000 is a signal line filter with a voltage rating of 5V and a maximum current rating of 100mA.

  • Impedance: 90 Ohm @ 100MHz
  • Maximum DC Resistance: 1.5 Ohm
  • Mounting: surface-mounted
  • Package: 0804 (2010 Metric), 8 lead package
  • Height: 0.024" (0.60mm)
  • Lines: 4
  • Packaging: reel-TR packaging
  • Operating Temperature: -40°C to 85°C
  • Market Status: currently active
  • Popularity: medium popularity
