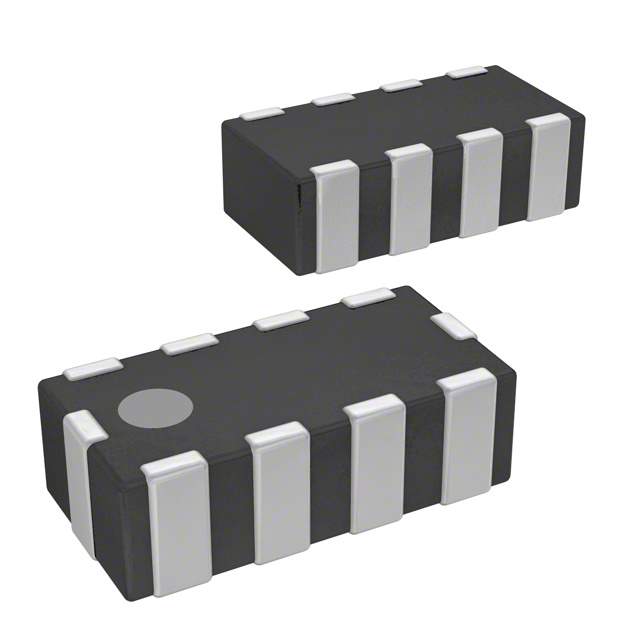

MEA2010LC100T002 Real Image
Same model may have multiple batches, images only for reference.

MEA2010LC100T002

Part No MEA2010LC100T002
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 10PF 270MHZ SMD
Datasheet
MEA2010LC100T002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 270MHz (Cutoff)
Attenuation Value 20dB @ 800MHz to 3GHz
Current 100mA
Values C = 10pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 023175-MEA2010LC100T002
Ultra Librarian 3D Model Ultra Librarian MEA2010LC100T002 CAD Model

Description

The TDK Corporation Low Pass filter is a surface-mount device that is ideal for use in data lines for mobile devices.

  • Voltage Rating: 6.3V
  • Current: 100mA
  • Channels: 4
  • Filter Order: 2nd order
  • Attenuation Value: 20dB @ 800MHz to 3GHz
  • Center/Cutoff Frequency: 270MHz (Cutoff)
  • Technology: LC
  • Height: 0.024" (0.60mm)
  • Resistance Channel: not specified
  • Value: C = 10pF
  • ESD protected: Yes
  • Market status: Active
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.079" L x 0.039" W (2.00mm x 1.00mm)
