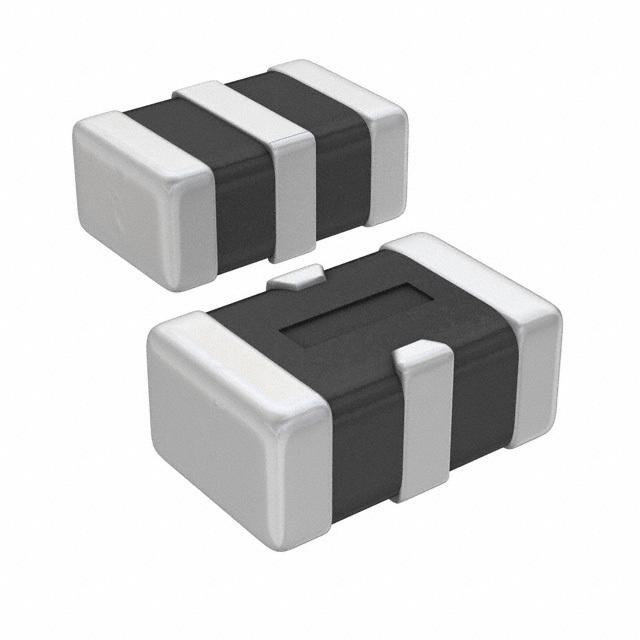

MEM2012P25R0 TDK Corporation
Same model may have multiple batches, images only for reference.

MEM2012P25R0

Part No MEM2012P25R0
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 25MHZ SMD / LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel 200 mA 0805 (2012 Metric), 3 PC Pad
Datasheet
MEM2012P25R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series MEM
Package Tape & Reel
Product Status Obsolete
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 25MHz (Cutoff)
Attenuation Value 20dB @ 300MHz ~ 2GHz
Current 200 mA
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 12V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 3 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.030" (0.76mm)
Standard Package 4,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 227960-MEM2012P25R0
Ultra Librarian 3D Model Ultra Librarian MEM2012P25R0 CAD Model

Description

The 227960-MEM2012P25R0 is an EMI/RFI filter from TDK Corporation.

  • Series: MEM series
  • Type: low pass filter
  • Design: designed for data lines in mobile devices
  • Voltage Rating: 12V
  • Technology: LC (Pi) technology
  • Cutoff Frequency: 25MHz
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Mounting: surface mount
  • Package Size: 0805 package size (2012 metric) with 3 PC pads
  • Operating Temperature Range: -40°C to 85°C
