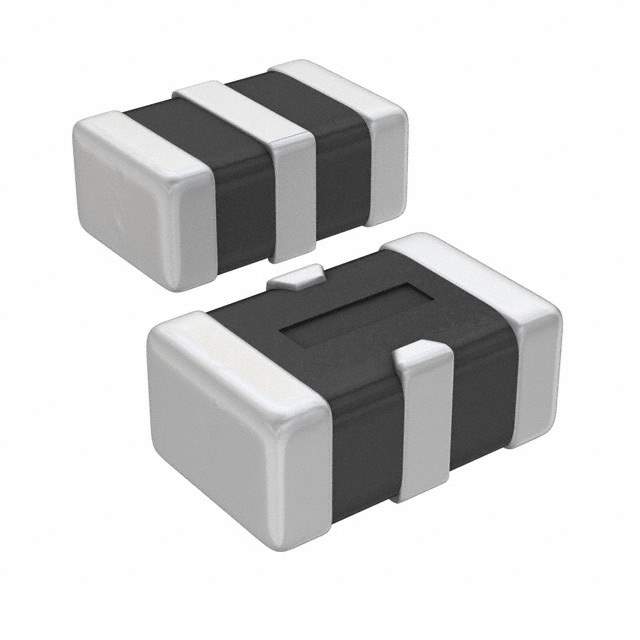

MEM2012W181R Real Image
Same model may have multiple batches, images only for reference.

MEM2012W181R

Part No MEM2012W181R
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 180MHZ SMD
Datasheet
MEM2012W181R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 5th
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 180MHz (Cutoff)
Current 100mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.087" (2.20mm)
Win Source Part Number 058452-MEM2012W181R
Ultra Librarian 3D Model Ultra Librarian MEM2012W181R CAD Model

Description

The TDK Corporation MEM2012W181R is a low pass filter from TDK Corporation.

  • Application: Data lines for mobile devices
  • Voltage Rating: 10V
  • Cutoff Frequency: 180MHz
  • Filter Order: 5th
  • Device Type: Surface mount
  • Package: Reel
