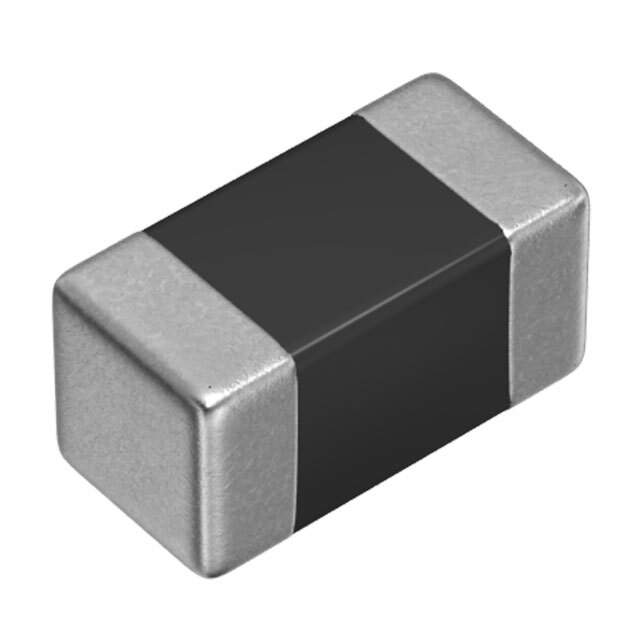

MLF1005DR33KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005DR33KT

Part No MLF1005DR33KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 330NH 25MA 1.5 OHM SMD
Datasheet
MLF1005DR33KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 330nH
Tolerance ±10%
Current Rating 25mA
DC Resistance (DCR) 1.5 Ohm Max
Q @ Freq 10 @ 25MHz
Frequency - Self Resonant 230MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 099212-MLF1005DR33KT
Ultra Librarian 3D Model Ultra Librarian MLF1005DR33KT CAD Model

Description

The TDK Corporation 099212-MLF1005DR33KT is a multilayer inductor with a current rating of 25mA and an inductance of 330nH. It is a surface mount device with a package size of 0402 (1005 Metric) and comes in a reel - TR. The tolerance is ±10%, and the core material is ferrite. The Q @ Freq is 10 @ 25MHz, and the frequency - self-resonant is 230MHz. The DC resistance (DCR) is 1.5 Ohm Max. The temperature range for operation is -40°C to 85°C. The TDK Corporation 099212-MLF1005DR33KT is an obsolete (EOL) inductor that is suitable for various applications, including inductors, coils, and chokes.
