Same model may have multiple batches, images only for reference.

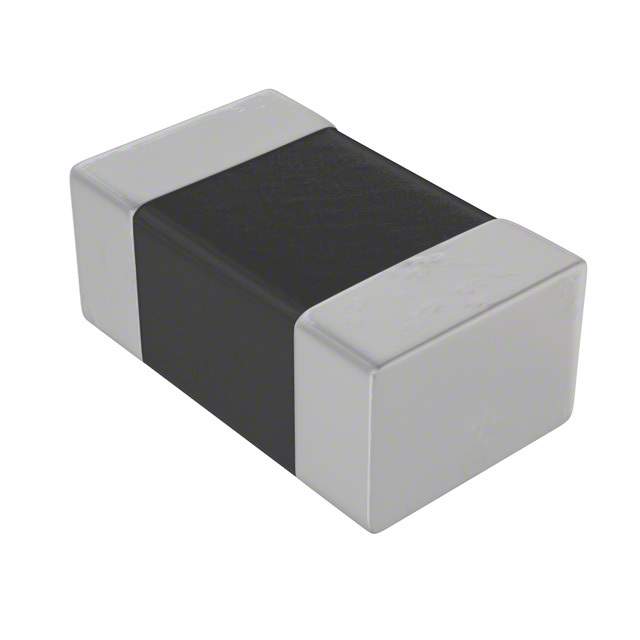

MLF2012DR22JT000 Real Image
Same model may have multiple batches, images only for reference.

MLF2012DR22JT000

Part No MLF2012DR22JT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 220NH 250MA 300 MOHM
Datasheet
MLF2012DR22JT000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 220nH
Tolerance ±5%
Current Rating 250mA
DC Resistance (DCR) 300 mOhm Max
Q @ Freq 20 @ 25MHz
Frequency - Self Resonant 250MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.041" (1.05mm)
Win Source Part Number 1077748-MLF2012DR22JT000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLF2012DR22JT000 CAD Model

Description

The MLF2012DR22JT000 is a multilayer inductor that is used in various applications such as power supplies, RF circuits, and communication equipment manufactured by TDK.

  • Component Type: Multilayer Inductor
  • Applications: Power supplies, RF circuits, communication equipment
  • Manufacturer: TDK
  • Popularity: Medium
  • Supply and Demand: Sufficient
  • Current Rating: 250mA
  • Inductance: 220nH
  • Tolerance: ±5%
