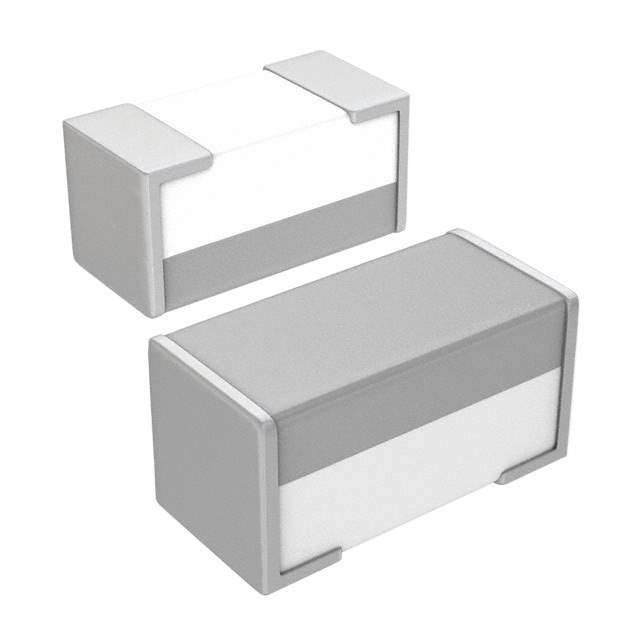

Same model may have multiple batches, images only for reference.

MLG0603S56NJT000

Name: MLG0603S56NJT000
Brand: TDK Corporation
SKU: 232833
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MLG0603S56NJT000
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 56NH 50MA 3.2 OHM SMD
Datasheet	MLG0603S56NJT000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Active
Type	Multilayer
Material - Core	Non-Magnetic
Inductance	56nH
Tolerance	±5%
Current Rating	50mA
DC Resistance (DCR)	3.2 Ohm Max
Q @ Freq	5 @ 100MHz
Frequency - Self Resonant	1.2GHz
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100MHz
Mounting	SMD (SMT)
Case / Package	0201 (0603 Metric)
Height - Seated (Max)	0.013" (0.33mm)
Win Source Part Number	058985-MLG0603S56NJT000
Ultra Librarian 3D Model	Ultra Librarian MLG0603S56NJT000 CAD Model

Alternative Products

Description

The TDK Corporation MLG0603S56NJT000 is a multilayer inductor with a current rating of 50mA and an inductance of 56nH.

Current Rating: 50mA
Inductance: 56nH
Height: 0.013" (0.33mm)
Mounting Type: SMD (SMT)
Tolerance: ±5%
Q @ Freq: 5 @ 100MHz
Frequency - Self Resonant: 1.2GHz
Frequency - Test: 100MHz
Category: Inductors, Coils, Chokes
DC Resistance (DCR): 3.2 Ohm Max
Status: active
Temperature Range: -55°C to 125°C
Case / Package: 0201 (0603 Metric)
Manufacturer: TDK Corporation
Win Source Part Number: 058985
