Same model may have multiple batches, images only for reference.

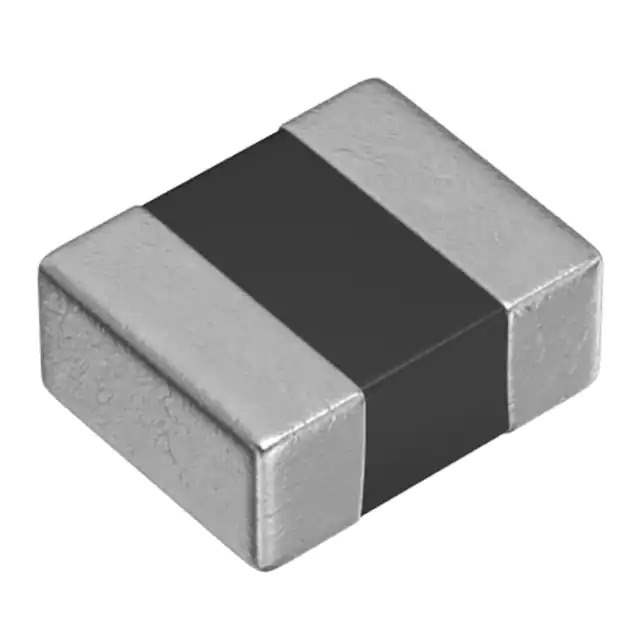

MLP2016HR47MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2016HR47MT0S1

Part No MLP2016HR47MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 1.7A 68.75 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series MLP
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 1.7 A
Shielding Shielded
DC Resistance (DCR) 68.75mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 747522-MLP2016HR47MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2016HR47MT0S1 CAD Model

Description

The MLP2016HR47MT0S1 is a fixed inductor from the MLP series by TDK Corporation.

  • Type: Multilayer Inductor
  • Package: Tape and Reel
  • Shielding: Shielded
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Inductance: 470 nH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • DC Resistance (DCR): 68.75mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 1.7 A
  • Inductance Frequency Test: 2 MHz
  • Core Material: Ferrite
  • REACH Status: Unaffected
  • Product Status: Active
  • Standard Package: 3,000 pcs
