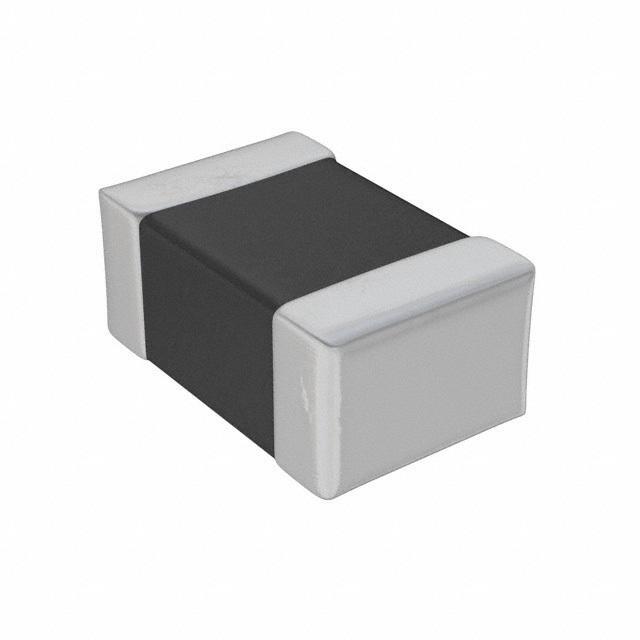

MLZ2012M4R7HT000 TDK Corporation MLZ2012M4R7HT000 Real Image
Same model may have multiple batches, images only for reference.
MLZ2012M4R7HT000 TDK Corporation MLZ2012M4R7HT000 Real Image
MLZ2012M4R7HT000 TDK Corporation MLZ2012M4R7HT000 Real Image
Same model may have multiple batches, images only for reference.

MLZ2012M4R7HT000

Part No MLZ2012M4R7HT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 400MA 340 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 400mA
Current - Saturation 300mA
DC Resistance (DCR) 442 mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.041" (1.05mm)
Win Source Part Number 1077888-MLZ2012M4R7HT000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLZ2012M4R7HT000 CAD Model

Description

The MLZ2012M4R7HT000 is a ferrite core multilayer inductor with a current rating of 400mA and an inductance of 4.7μH from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Product Name: MLZ2012M4R7HT000
  • Type: Ferrite Core Multilayer Inductor
  • Current Rating: 400mA
  • Inductance: 4.7μH
  • DC Resistance: 442 mOhm (max)
  • Height: 0.041 inches (1.05mm)
  • Tolerance: ±20%
  • Packaging: Reel
  • Dimension: 0805 (2012 Metric)
  • Supply and Demand Status: Sufficient
