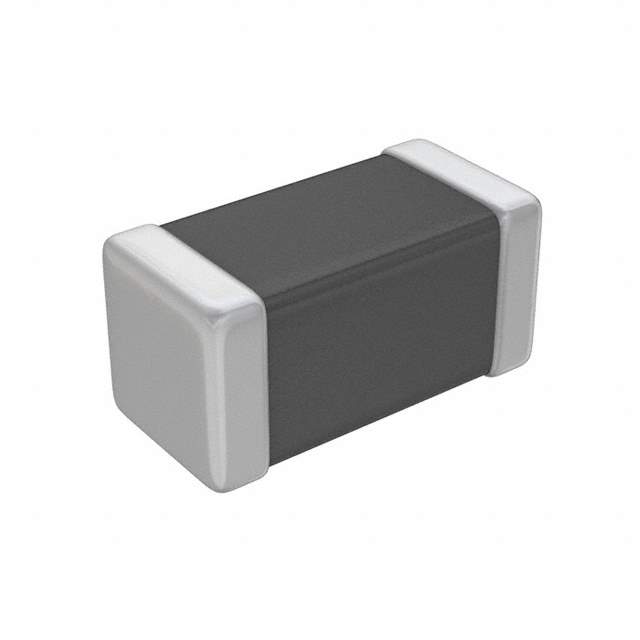

MMZ0603F100CT000 Real Image
Same model may have multiple batches, images only for reference.

MMZ0603F100CT000

Part No MMZ0603F100CT000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 10 OHM 0201 1LN
Datasheet
MMZ0603F100CT000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 10 Ohm @ 100MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 600 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.013" (0.33mm)
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Win Source Part Number 024093-MMZ0603F100CT000
Ultra Librarian 3D Model Ultra Librarian MMZ0603F100CT000 CAD Model

Description

This electronic component is manufactured by TDK Corporation and is an active filter with a signal line filter type.

  • Maximum Current Rating: 200mA
  • DC Resistance (DCR) (max): 600 mOhm
  • Mounting: SMD (SMT)
  • Height (max): 0.013" (0.33mm)
  • Lines: one
  • Impedance: 10 Ohm @ 100MHz
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
