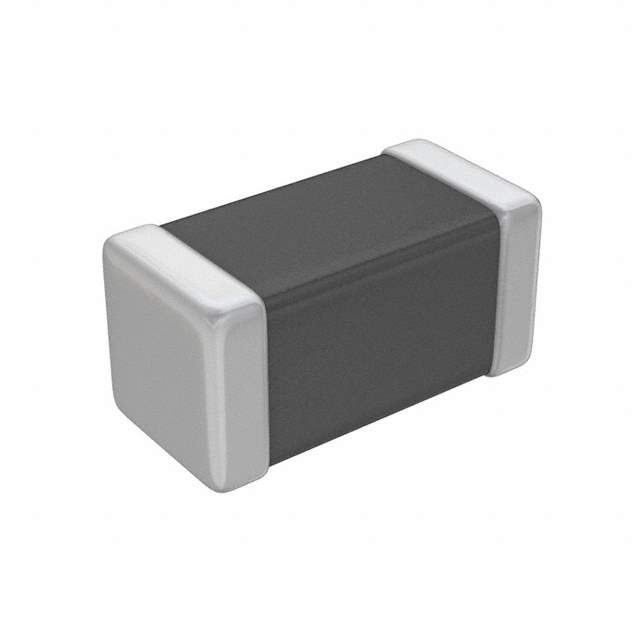

MMZ0603S102ET Real Image1 MMZ0603S102ET Real Image2
Same model may have multiple batches, images only for reference.
MMZ0603S102ET Real Image1 MMZ0603S102ET Real Image2
MMZ0603S102ET Real Image1 MMZ0603S102ET Real Image2
Same model may have multiple batches, images only for reference.

MMZ0603S102ET

Part No MMZ0603S102ET
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1K OHM 0201 1LN / 1 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0201 (0603 Metric) 200mA 1.25Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr TDK Corporation
Series MMZ-E
Package Tape & Reel (TR)
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1.25Ohm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Height (Max) 0.013" (0.33mm)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 15,000 pcs
Win Source Part Number 1382928-MMZ0603S102ET
Ultra Librarian 3D Model Ultra Librarian MMZ0603S102ET CAD Model

Description

The MMZ0603S102ET is a ferrite bead and chip filter designed for signal lines, manufactured by TDK Corporation.

  • Current Rating (Max): 200mA
  • DC Resistance (DCR) (Max): 1.25Ohm
  • Impedance @ Frequency: 1 kOhms @ 100 MHz
  • Size / Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • Mounting Type: Surface Mount
  • Package / Case: 0603 (1608 Metric)
  • Packaging: Tape & Reel (TR)
  • Height (Max): 0.013" (0.33mm)
  • Number of Lines: 1
  • Operating Temperature: -55°C ~ 125°C
  • REACH Status: Unaffected
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
